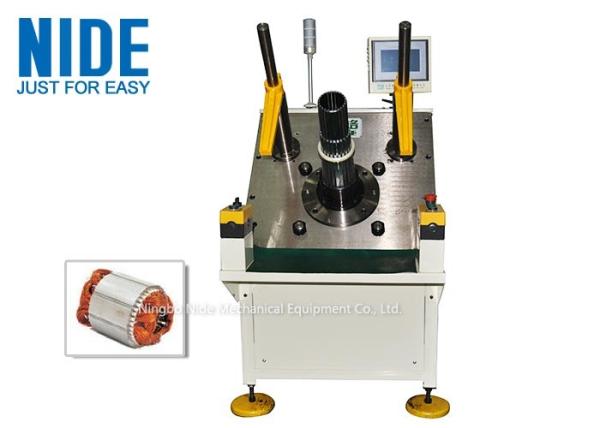

Table Fan Motor Stator Coil Winding And Wedge Inserting Machine Semi Auto

Table Fan Motor Stator Coil Winding And Wedge Inserting Machine Semi Auto

Quick Detail:

Discription:

This machine is used to inserting coil and wedge into stator. And it can insert coil and wedge simultaneously. This touch screen can set all the necessary data. With easy and convenient tooling change process, this machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.

Technical parameter:

Application:

This machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.

Operation step

• Power on the machine
• Insert the wire by winding form
• Adjust the tooling according to different model stator
• Put stator to the tooling
• Set the stator diameter in the touch screen then select the pre-set data.
• Press "start" button.
• Machine will automatically do coil inserting.
• Take out the stator

Competitive advantages

Variety of application, easy operation.

We have Overseas Service Center.

Machine is controlled by PLC. All the parameter can be set in the touch screen.

It is suitable for stators with different model number and dimension.

The operation and tooling change process is easy.

We could customize machine for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

Stator made by this coil winding and wedge inserting machine
