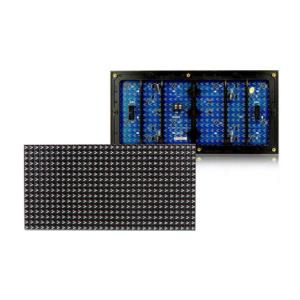

Super Slim Rgb P10 Led Display Module Lightweight 320 X 160mm Size

Categories LED Display Module
Brand Name: SC
Model Number: P10 Outdoor
Certification: ISO9001,FCC,IP65,3C ,ROSH
Place of Origin: Shenzhen China
MOQ: 1 Square Meters / 1 Piece
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Square Meter/Square Meters per Month
Delivery Time: 10 days after received deposit
Packaging Details: Wooden box,Flight Case
Brightness: 4500-5500Nits
Scan Mode: 4s
Warranty: 2 years
Driver IC: MBI 5124
Uasge: Outdoor
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Super Slim Rgb P10 Led Display Module Lightweight 320 X 160mm Size

P10 Outdoor LED Video Wall High Refresh rate 320X160mm full color led screen RGB Video wall

Product Description :
High brightness P10 Panel Outdoor P10 SMD 3535 LED Rental Screen:
1) High cost performance.

2) Good Consistency and High resolution.

3) High brightness and refresh rate .

4) Good after-sale services.

5) In the premise of guaranteeing quality,our company sales at low profit and warranty for 2 years.

Advanced Control Technology
a. Calibration: Pixel-by-pixel brightness and color calibration technique to keep uniform brightness and natural colors of LED display.
b. Monitoring: Proprietary control system can monitor the temperature, brightness, status information of LED display in real time.
c. Remote network control: Controlling and changing all display information, controlling the displays of several cities in one place to change the contents at any time.
d. Adjustable brightness: Adjusting screen brightness automatically according to environmental lighting based on sensitive control system, adjusting it manually or by programmable menu.
e. Large screen control: Controlling super large size display stably without any black screen, frame vibration or reducing.
f. High refresh rate, high gray scale and high contrast ratio: More realistic pictures optimize commercial advertisement value.

Parameter

NoItemParameter
1Pixel Pitch10mm
2Pixel Configuration1R1G1B / R:G:B=3:6:1
3LED LampFull color
4Density10000dot/m2
5Module Size320*160mm
6Module Pixel32*16=512dot
7Module Thickness17mm
8Module Weight395g
9Module Power≤63W
10Drive ValtageDC5V
11Module Electric Current11-12.5A
12PortTypeHUB-75D/B


3Screen Parameter

NoItemParameter
1Standard Caninet Size960mm*960mm*130mm
2Cabinet Weight9.85KGS
3Brightness/Adjustment≥7800cd/m², Level 16- Automatic / Level 100-Manual operation
4View Angle≥120°(Vertical),≥120°(Horizontal)
5Best View Distance10-100m
6Grey ScaleWithin 65536 Step
7Frame Frequency≥60Hz
8Refresh Rate≥1560Hz
9Signal Input SourceComposite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
10Scan Mode1/2 1/4
11Drive IC5020
12Module Qty / M219.5
13Display Color Qty16777216
14Continuous Working Time>24(Hrs)
15Screen Lifespan>100,000(Hrs)
16MTBF>5000(Hrs)
17Max. power consumption1250W/㎡
18Ave. power consumption420W/㎡
19Out of control pixel rate≥3/10,000(discrete distribution)
20Control Distance100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
21FlatnessScreen Surface≤0.5mm,Pixel Pitch≤0.3mm
22Operation Temperature-10℃~+50℃
23Working Humidity10%~98%RH
24Storage Temperature-40℃~+85℃
25Software ConnectionStandard Computer Connection,Compatiable With Windows,Unix,Novell
26protection systemOvertemperature/overload/power/image compensation/nonlinear correction
27Working Valtage200~240 V
28Dielectric Strength50HZ/1500V(AC RMS)/1min
29Temperature RiseMetal≤40K,Insulation≤65K , After Heat Balance
30IP GradeIP65
31Computer display mode1024*768
33Media PlayerLED Pressional Media Player


Product Function
Stable performance,wide applicability, high brightness, superb performance/price ratio.
1. High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown.
2. Superb performance/price ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.

Product Show

















































Quality Super Slim Rgb P10 Led Display Module Lightweight 320 X 160mm Size for sale
