| Categories | Open Frame LCD Monitor |
|---|---|
| Place of Origin: | Shenzhen China |
| Brand Name: | AXNEW |
| Model Number: | AXD-15OPN1P2-T1(VGA/DVI) |
| MOQ: | 5 Pieces |
| Price: | US$50~US$250/pcs |
| Packaging Details: | 10 Pcs /Carton with firm foam |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 2000 pieces/month |
| Certification: | CE/ROHS/FCC |
| Size: | 15'' |
| Resolution: | 1024x768 |
| Brightness: | 250nits |
| Controller board: | Wide Temp.|VGA|DVI |
| Backlight: | LED based |
| Use Life: | 50,000 Hours(min) |
| Touch Options: | Resistive|Capacitive|IR touch|PCAP |
| Mechanics: | Open Frame|Thin|Slim |
| Company Info. |
| AXNEW DISPLAY TECHNOLOGY CO.,LTD |
| View Contact Details |
| Product List |

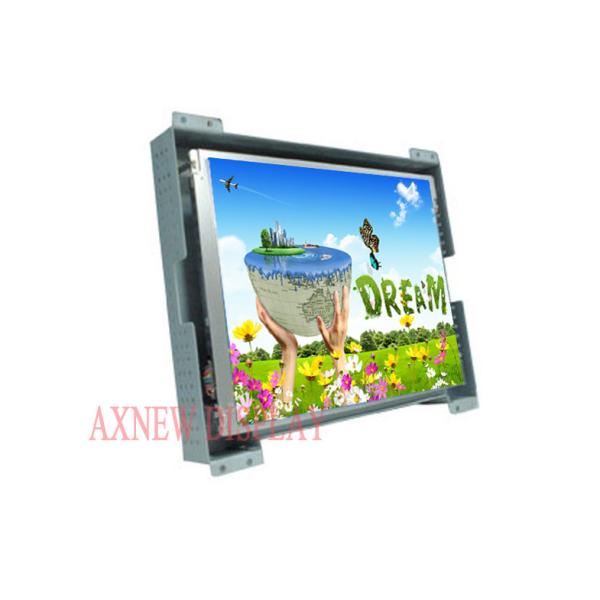

Open Frame LCD Monitor TFT Color Kiosk Touch USB Industrial Screens
For application
| Display Specifications | |
| Display | 15" Color TFT Open Frame Monitor |
| Model Name | AXD-15OPN1P2-T2 |
| Active Display Area (mm) | 304.1(H)x304.1(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | XGA (1024X768) 262K/16.2M Color |
| Brightness (CD/m^2) | 400cd/m^2 |
| Contrast Ratio | 2000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 13.3W typical, normal operation |
| Touch Screen | 5 wire Resistive touch USB Connection |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel Metal chassis & Galvanized Color |
| Dimensions | 329.0 x 293.0x 29.0 (mm) |
| Mounting | Edge locking |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~85℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
Packaging & Delivery
| Packing details | 1x 15inch Open Frame LCD monitor; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15
working days for order production |
1) This is 15 inch without touchscreen photo.
2) This is 15 inch LCD with 5 wire resistive touchscreen.
3) This is 15 inch LCD with capacitive touchscreen.
|
