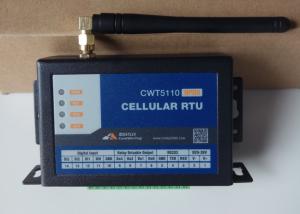

Gsm GPRS Industrial Data logger for industrial application

System Feature

• Adopted highly integrated industrial 32-bit ARM MCU
• Reliable performance with built-in double watchdog, 24×7 operation
• With signal filtering mechanisms
• Stable reconnection strategy for data transmit
• Synchronize clock with multiple way, Sms, NTP, CwtIO Server
• Automatically execute preset task by schedule(second, minute, day, week, month)
• Event-based linkage programming, e.g. alarm linkage output
• Provide console utility for visual programming over 100 parameters
• Optional exterior rechargable battery for 8-20 hours working when power lost

DI feature

• Accept NO or NC dry contact

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• Remote or local event activate DO on/off/pulse
• Remain down status when power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• DO can be activated by remote or local schedule
• Remember status when power lost

AI feature

• Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision)
• Transduce 4-20mA(0-5V) to actual value
• Support offset and gain, alarm parameters, upload data setting
• Detect connect or disconnect to alarm

SMS feature

• Can add 10 administrator numbers for alarm and remote control
• Sms alarm when any IO channel triggered or out of preset normal range
• Editable alarm and recover sms with time stamp
• Remote get device status or value by sending sms command
• On/off/pulse output by sending sms
• Can set interval to report IO channel's status or value by sms
• Remote setting via sms commands
• Can query SIM card balance, sms forward
• Sms alar for power lost and recover

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• TCP/IP connect at most 4 servers(support Static IP address or domain)
• Automatically Upload data when alarm or according to schedule
• Support http post, Modbus TCP, CWT protocol over cellular or Wi-Fi
• Support two-way data transparent transmission with RS485 or RS232

Wireless Remote Monitoring Solutions

Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well. Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and install.

We can interface to machines in different ways, whether it be via process signals, or serial communications, including Modbus.

Benefits of Telemetry

This ‘Internet of Things’ telemetry technology offers rapid payback, delivering operational, environmental and financial benefits, from cutting delivery miles, to reacting in good time to warnings of machinery breakdown, leakage, theft, run-outs and safety breaches.

Why choose CWT

CWT award-winning Telemetry Solutions are proven globally, in a range of sectors including chemical & petrochemical, food distribution and production, transport, water & waste, environmental and factory automation.
