Medical Devices Lithium Manganese Dioxide Primary Battery Cell

Categories Lithium Pouch Cell
Brand Name: HCB
Model Number: CP602434
Certification: UN/CE/UL
Place of Origin: Hubei Wuhan
Price: negotiable
MOQ: 1K pcs
Payment Terms: T/T, L/C
Supply Ability: two million unit per month
Delivery Time: 35 work days
Packaging Details: Special design for Air/Sea/Courier transportation
Rated voltage: 3.0v
Rated capacity: 1000mAh
Storage Humidity: ≤ 75%RH
Maximum Continuous Current: 300mA
Peak pulsing current: 500mA
Storage Temperature: ≤30℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

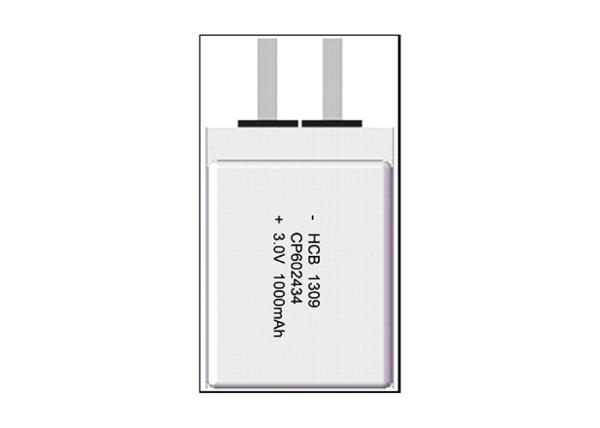

Medical Devices Lithium Manganese Dioxide Primary Battery Cell

Medical Devices Lithium Manganese Dioxide Soft Battery Long Shelf Life


Nominal Capacity1000mAh
Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage3.0 V
Maximum Continuous Current300mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current500mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH

Operating Temperature-40℃ to +60℃
Battery DimensionSee drawing on pag
Max Weight9.0g
Self-discharge Rate2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life10 years
Ambient temperature 23±2℃

1. Battery Characteristic


  • High Voltage

Each cell nominal voltage up to 3.0V

  • High Energy Density

The specific energy density of each battery is 333Wh/kg, more than 50% higher than steel shell lithium battery under the condition of the same weight

  • Wide Operating Temperature Range

The battery with a strong adaptability to temperature can be in work between -40℃ ~ +60℃

  • Long Shelf Life

Under the condition of normal temperature, the battery self -discharge rate of no more than 2% per year


Without voltage passivation, no activation necessary after long time storage, install-and-use immediately, free of maintenance


To meet the requirements of modern light & handy electronic products


Dimensions can be customized according to different demands, short product development period, meeting customers’ varieties of personalized needs


The best safety and reliability of lithium battery, in the case of without any protection measures to withstand short-circuit and piercing severe test, etc.


2. Main Applications


  • Tracking

RFID products, road toll transponder, IC cards, etc.

  • Security & alarms

Smoke detectors, security alarms, seismometers, locking system, monitoring system, etc.

  • Telecommunications

Wireless telecommunication devices


. Manufacturing Advantages


  • More than 9 years experience in producing Soft Pack Li-MnO2 Battery makes HCB professional;
  • There are eight patents applied by HCB in Soft Pack Li-MnO2 Battery;
  • 60 models available, and customized with varies needs;
  • Since 2007, HCB has produced and sold more than 15,000,000 pieces Li-MnO2 Battery to many creative customers worldwide;
  • So many terminal customers make HCB experienced in both civil and industrial applications.

4. Company Advantages


  • HCB quality management meets the standard GB/T19001-2008/ISO9001:2008;
  • The Environment Management System in HCB is accord with GB/T24001-2004/ISO14001:2004;
  • The drop test is workable of HCB battery;
  • Report for safe transport of goods can be provided with you if needed;
  • CE test is available for HCB Battery;
  • We can provide you with the Rosh certificate if you need;
  • The UL certificate can be given to you if required;

5. FAQS of General Safety Instructions


  • When the abnormal heat release or leakage occurs, what should we do?

When the abnormal heat release or leakage occurs, the battery is not able to be continued to use.


  • What should you do if the children swallow the battery?

The battery should be stopped to using when the abnormal heat release or leakage occurs.


  • What should you do before you use the battery?

The battery should be kept out of the children firstly. If swallowed by children, please contact a physician at once.


  • What is the effect of the signs + and - on the battery?

You need to follow the signs + and - on the batteries and make sure not to reverse. If batteries are wrongly used, they will be hot very fast and can lead the gas and other toxic materials leakage.


  • Why should you keep the batteries away from the fire?

They are going to be hot in very short time and it will lead the leakage of gas and toxic materials which may cause a big rupture.


  • When the batteries are changed, what should you pay attention to?

The batteries of different electrochemical system, grades, or brands can’t be mixed because it would lead toxic material or gas leakage and/or a big rupture.


  • What will happen if the primary batteries are charged?

You are not able to charge the primary batteries as it would lead to gas or toxic material leakage.
