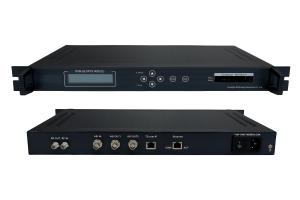

DVB-S/S2 IPTV IRD with 2-CI

Overview

FL-5266 DVB-S/S2 IPTV IRD supports 1xDVB-S/S2 RF and 1xASI input. It has 2×CI interfaces and supports multi-type of CAM cards. It can output ASI and IP (SPTS, TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems

Features

Support DVB-S/DVB-S2/ASI input

Support ASI/TS over UDP output

Common interface with 2 slots (PCMCIA) supports multi-type of CAM cards

2 slots of PCMCIA module could descramble multi-program stream

Frequency Range: 950~2150Mhz

Technical Specification
