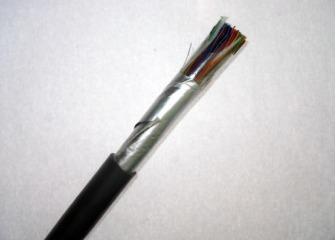

HPVV HPVYZ Terminal Cable Wires PVC Jacket AL Foil Shield

HPVV HPVYZ Terminal Cable Wires PVC Jacket AL Foil Shield

• Tinned copper conductor
• PE insulation
• PET tape
• AL Foil Shield
• PVC or LSZH Jacket

• Typical structural parameters:

  Type	Pairs	Min. Thickness (mm)	Cable OD (Φmm)	WET (kg/km)	Type	Pairs	Min. Thickness (mm)	Cable OD (Φmm)
  HPVV	10×2×0.4	1.4	11.0	90	10×2×0.5	1.4	11.5	110
  	800×2×0.4	1.8	52.0	3070	800×2×0.5	2.0	57.0	4290
  HPVYZ	10×2×0.4	1.4	11.0	90	10×2×0.5	1.4	11.5	110
  	800×2×0.4	1.8	52.0	3070	800×2×0.5	2.0	57.0	4290

  Electrical Performance

  No	Project	Unit	Performance
  1	Conductor DC Resistance +20℃	W/km	Conductor OD 0.4 0.5 MAX 150.0 97.8
  2	Insulation Resistance +20℃ DC 100～500V	MW.km	≥500

  Environmental Performance

  No	Project	Unit	Performance
  1	Conductor Elongation	%	≥15
  2	Insulation Tensile trength	MPa	≥12.5
  3	Insulation Elongation	%	≥125

  Others:

  Project	Content
  Application Scope	It is suitable for connecting incoming telephone cables from the underground access room of the exchange office to the main wiring rack of the switchboard, and also for the wiring of the building inside the telephone network and the wiring along the wall.
