VESA Mounting Barebones Mini Pc , Linux 100 * 100 Mm Fanless Embedded Computer

Categories Industrial Embedded Box PC
Brand Name: QYT
Model Number: EFIC-6000CB
Certification: IP66 IP69K CE ROHS FCC
Place of Origin: China
MOQ: 1
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Piece/Pieces per Month
Delivery Time: 3 working days upon receive the payment
Packaging Details: 1pc/carton, weight: 4kg/pc,Packing Size:360 x 180 x 320 mm
CPU: Intel Celeron 4305U Duad Core 2.1GHz
Waterproof Rate: IP66 / IP67 / IP69K
Ram: 4GB/8GB/16GB
Storage: 32G SSD/64G SSD/128G SSD
Storage Temperature: -20~80°C(-22~176°F)
VESA: 100 x 100 mm
Working Voltage: DC 9V~36V
LAN: 1 x LAN ( Optional )
USB: 2 x USB2.0 / 2 x USB3.0 ( Optional )
COM: 2 x RS232 ( Optional )
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

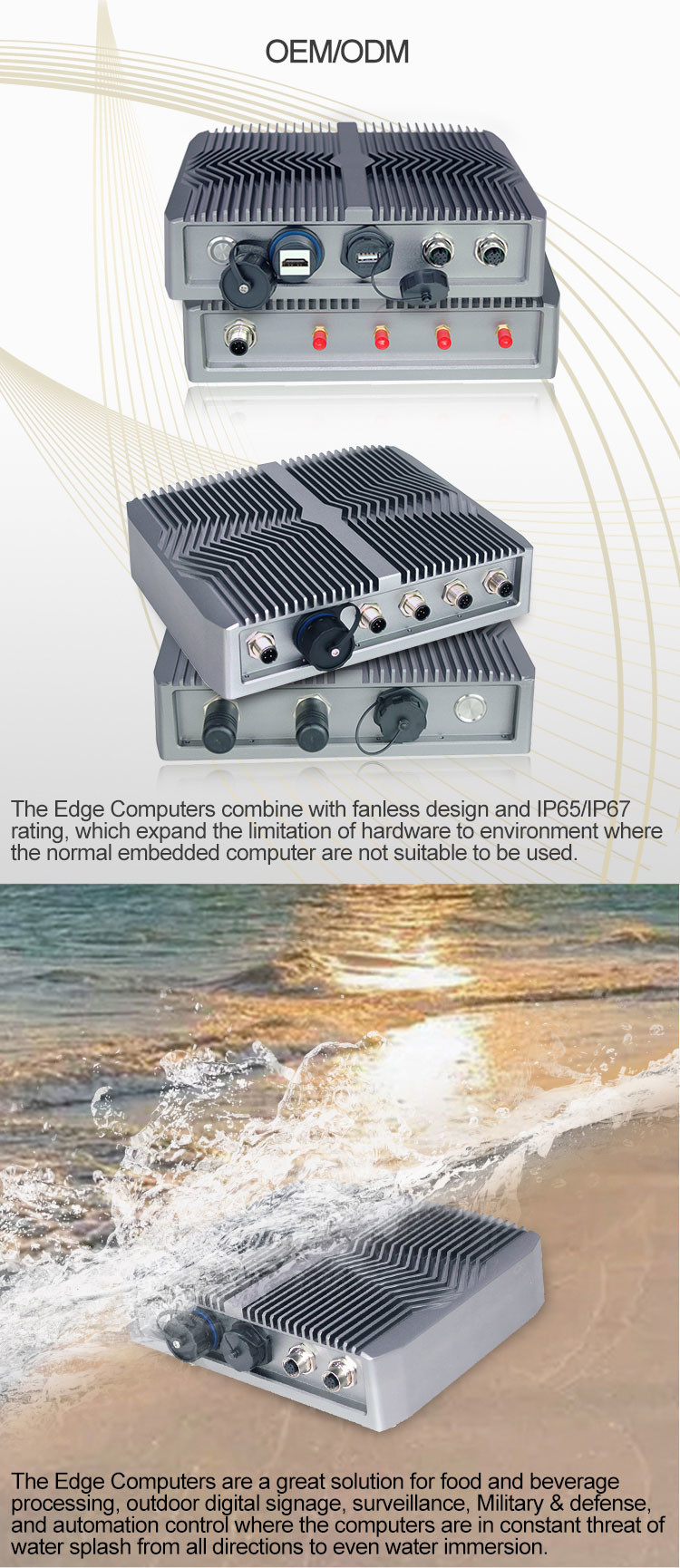

VESA Mounting Barebones Mini Pc , Linux 100 * 100 Mm Fanless Embedded Computer

Fanless Micro Pc Barebone Computer Linux VESA Mounting 100 * 100 Mm


Features:

1. Aluminium alloy shell, whole pc IP66/ IP67/IP69K waterproof


2. Intel Celeron 4305U Duad Core 2.1GHz, Embedded mini Computer

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC12V~24V Input,(+9V~36V)wide voltage input optional


Application

manufacturing

industrial automation

medical, semiconductor

food processing

machine control


Specification

EFIC-6000CB
SystemCPUIntel Celeron 4305U Duad Core 2.1GHz
L3 Cache2MB
ChipsetsIntel 8th Skylake-U SOC
MemoryDDR4L 2400MHz 4GB, Up to 32GB
Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
GraphicsIntel HD Graphics 610
NetworkIntel® i211A 1000 Mbps port
AudioRealtek ACL662 Audio controller
Operation SystemWindows8 / 10, Linux, Unix, QNX
I / OVGA1 x VGA / 1 x HD-MI ( Optional )
LAN1 x LAN ( Optional )
USB2 x USB2.0 / 2 x USB3.0 ( Optional )
COM2 x RS232 ( Optional )
Wireless NetworkWiFi + Bluetooth ( Optional )
Other I/O Interface1 x Power Switch
InstitutionalMaterialAluminum Alloy Shell
ColorSilver / Black ( optional )
VESA MountingVESA: 100 x 100 mm
Waterproof RateIP66 / IP67 / IP69K
Product Dimension220 x 180 x 55 mm
Cut-out Size/
Packing Size360 x 180 x 320 mm
Gross Weight4.0 KG
Power and EnvironmentOperating Temperature-10~60°C
Storage Temperature-20~80°C(-22~176°F)
Relative Humidity5%~95%@40°C, non-condensing
Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power SupplyAC 100 - 240V~50/60Hz,1.5A
Working VoltageDC 9V~36V
Power Consumption≦20W

Our Advantage

1. Experience

QYT has more than 10 years rich experience in Industrial Computer/monitor filed.


2. Wide products line

QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.


3. Customization functions

Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.


4.Widely useage environment

QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
