High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor

Categories	Water Level Transmitter
Grade:	Industrial
Warranty:	1 YEAR
Customized support:	OEM, ODM
Place of Origin:	Anhui, China
Brand Name:	WNK
Model Number:	PWCS72
Product Name:	High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor
Measuring range:	0.3-10m
Process connection:	G1 1/2A or flange, Bracket
Housing material:	Aluminum/ABS
Accuracy:	0.25%FS
Transducer material:	PA66+GF30/PVDF
Process temperature:	-40-70℃
Process pressure:	-0.02-0.1MPa
Output:	4-20 mA/HART/RS485/Modbus
Explosion-proof grade:	Exia IIB T6 Ga
Price:	$200.00/Units 1-49 Units

Contact Now

Add to Cart

Company Info.

Hefei WNK Smart Technology Co.,Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

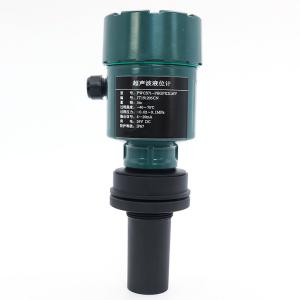

High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor

Aluminum Housing material

The Housing is made of aluminum with specific explosion-proof function

Two transducer options

Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment

High Technology Functions

Echo curve display function

False echo storage function

Frequency adjustment function

Noise filteringfunction

Wide Measuring Range and High Accuracy

Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy

Application Case

Model	Measuring Range	Process Connection	Transducer Material
PWCS71	0.25-5m	G11/2"A/Flange/Bracket	PA66+GF30/PVDF
PWCS72	0.3-10m	G2"A/Flange/Bracket	PA66+GF30/PVDF
PWCS73	0.4-10m	M66*2/Flange/Bracket	PA66+GF30/PVDF
PWCS74	0.5-20m	M95*2/Flange/Bracket	PA66+GF30

Installation Guide

The transducer shall be vertical to the medium surface

The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible

Hot Products

Packing&Shipping

Company Profile

FAQ

Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test
before shipment.
Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?
A: 12 month from shipment date, for non-man-made damages.
Q: SHIPPING AND DELIVERY
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
