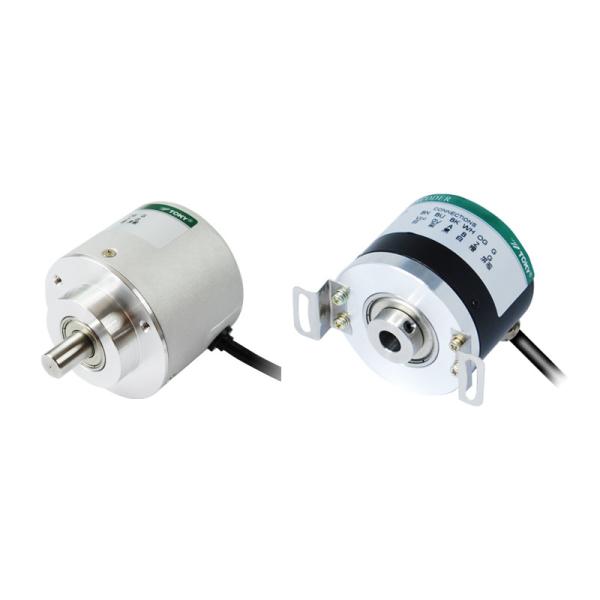

HY50 Series Incremental Rotary Encoder Outer diameter Φ50mm Solid
Shaft Φ6/8mm Max Speed 6000RPM
1. Features and advantages:
a). Outer diameter Φ50.
b). Shaft Φ6/8mm.
c). Cable outgoing, 2 meters length.
d). Output Frequency MAX 300 KHz.
e). Max Speed :6000 RPM
f). Protection :IP54
2. Model specification:
3. Technical parameter:
| Power supply | Voltage | Line drive output DC 5V ±5% or output DC 8~26V ±5% | Input and Output | Response time | ≤1µs (when cable length is 2m) | |
| Ripple wave | ≤3%rms | NPN open collector output | Negative logic (for low-level) Load current≤30mA | |||
| Current consumption | ≤120mA, DC 5V power ≤80mA | Push and pull output | Output voltage≥ power voltage - 3V DC Load current≤30mA output current ≤10mA | |||
| Output wave | Signal mode | A, B phase+Z phase (zero position) | ||||
| Max response frequency | 300kHz | Voltage output | Output voltage≥power voltage - 3V DC Output current≤30mA | |||
| Max speed | (Max frequency/resolution)x60 | |||||
| Duty ratio | 50±25% | Line drive output | Output voltage≥2.5V DC Load/ Output current≤20mA | |||
| Phase difference width | 25±12.5% | |||||
| Z phase signal width | 100±50% | Residual voltage | ≤0.5V DC | |||
| Mechanical specification | Starting torque | ≤ 0.01N · m(+20℃) | Ambient specification | Short-circuit protection | Output and power supply | |
| Rotor inertia | 0.3 × 10-6KG·m2 | Ambient temperaure | -20~+85℃ | |||
| Shaft loading | Radial | 25N | Store temperature | -30~+95℃ | ||
| Thrust | 20N | Ambient humidity | 35~85%RH (Non Condensing) | |||
| Max revolution | 6000rpm | Dielectric strength | AC 500V (50/60Hz) for 1 min | |||
| Cable | Material | PVC | Insulation resistance | ≥ 50MΩ | ||
| Length | 2m | Anti-vibration | 0.75mm amplitude at 10~55Hz*2 | |||
| Diameter | Φ 5mm | Anti-impact | 490m/S2 11ms*3 | |||
| Weight | About 200g | Protection | IP54 | |||
