| Categories | 8x8 Dot Matrix LED Display |
|---|---|
| Brand Name: | LIGHTBO |
| Model Number: | LB03885AG1B-D |
| Certification: | RoHS&SGS&ISO |
| Place of Origin: | Shenzhen,China |
| MOQ: | 1000PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000PCS/Day |
| Delivery Time: | 15-20Days |
| Packaging Details: | EPE+CARTON 54*37*40CM |
| Outer dimensions: | Dot Matrix 8 x 8 LED Display |
| Emitting color: | Pure Green |
| Emitting dot: | 3.0mm |
| Polarity: | Row Anode Column Cathode |
| Segment/Surface: | White/Black |
| Means of Transport: | Ocean, Air, Land |
| Life span: | 80000 Hours |
| Application: | Elevator Position Indicator |
| Company Info. |
| Shenzhen Guangzhibao Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Advantages:
Code:Pure Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 3.0 | 3.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 200 | 220 | mcd | |
| Spectrum With Of Half Value | λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 525 | 530 | nm |
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range | Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃

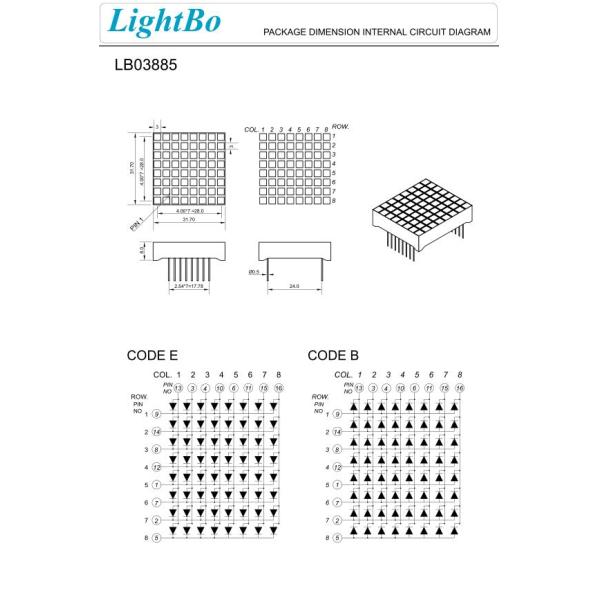

Drawing:
1.Is your parts new ?
Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.
2.What is your warranty?
Answer: Within one year after package have been received.
3.How to pay the order?
Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.
4.Quality problems
Answer: If there is any quality problem or question, we could offer technical support or return service.
5.What is your lead time?
Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.
6. May I have a sample for testing?
Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
|
