RGB Interface 3.5 Inch TFT LCD Screen 320x240 QVGA Landscape Type

** Datasheet Download **

SF-TC350M-9268A1-T Specification.pdf <with Resistive Touch Screen>

SF-TC350M-9268A1-N Specification.pdf <without Touch Screen>

3.5 Inch TFT LCD Screen 320x240 QVGA landscape type with RGB interface TFT Lcd Module

Saef Tech SF-TC350M-9268A1-T is a diagonal size 3.5 inch TFT-LCD module with resolution QVGA 320x240 pixels. This module is built in with HX8238D IC; it includes the controller and driver IC functions, supports RGB interface, supply voltage (Vdd) range from 2.5V to 3.3V. This module is having Anti-Glare surface panel, View Direction 6 o'clock, and aspect ratio 4:3.

SF-TC350M-9268A1-T TFT-LCD module is landscape mode with brightness 350 nits. The module also is available for Resistive Touch Screen and Projected Capacitive Touch Screen optional. SF-TC350M-9268A1-T can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. Then you can place us the order.
For designing or further discussion, it is better to contact us by email / phone for more clear and accurate LCD solution proposal for you. .
2. What kind of display we provide?
We have TFT color LCD display module, monochrome lcd module, OLED lcd module, lcd module with digital frame, Android Tablet, etc. We support both indoor and outdoor applications, industrial and commercial applications.

We also support standard solutions and customized design solutions.

We have off-shelf and design-in products to provide customer with one-stop solutions.

3. How about the warranty ?
We have 1 year warranty. All the defects can be returned and replaced.
4. What is your terms of delivery?
We accept EXW, FOB, FCA, etc. You can choose the one which is the most convenient or cost effective for you.

Why Choose us

1．We provide LCD Display custom solution

Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2．Total solutions for Touch screen and display

Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3．Commitment to quality reliability

SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4．Long-term supply

Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

3.5 inch TFT screen Drawing

Pin Definition:

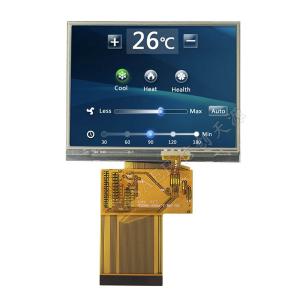

3.5 inch TFT screen Real Product Image
