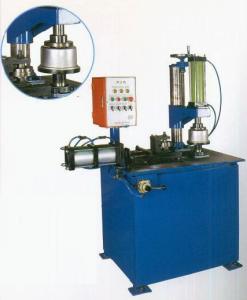

Rice Cooker Punching Hydraulic Stretching Machine , Width Edge Trimming Metal Stretching Machine

Hydraulic Stretching Machine Rice Cooker Punching Machine Width Edge Trimming

1, General description

The automatic production line is mainly used for making small filter housing. Five steps: (1) punch round piece (2) first stretching (3)second stretching (4) third stretching (5) trimming.

2, Machine Specifications

1, the main performance:
1) With quick clamping and splitting, slow mode locking.
2) Adjustable clamping pressure
3) Independent water supply device
4) There are multiple bulging pressures.

2, characteristics
1) Frame structure, the active workbench runs accurately.
2) There is a high pressure water flying shield for safe operation.
3) The oil supply system is placed on the top of the machine and separated from the water supply system to ensure that the hydraulic oil does not enter the water.
4) Automatic exhaust device to make the water expansion mold pressure uniform.

3, Main specification

3, Production process

• According to your product picture and dimension, the production process is (1) material cutting, (2) stretching, (3)bulge, (4)edge trimming, (5) punching holes.
• Normally you can buy the round aluminum piece from the market, so this offer doesn't mention the material cutting machine.
• According to your product picture, we suggest the rubber bulge way to form the pot body, not the water bulge way.
• The polishing, washing, oxidation, etc after edge trimming step are not offered in this quotation. If you want, we will offer you later.
• The offered machines above have this production capacity:

FAST HYDRAULIC STRETCHING MACHINE Y28-200K: 600pcs/h

TRIMMING MACHINE KE-320: 300pcs/h

PUNCHING MACHINE JH21-80: 600pcs/h

Please decide the machine order quantity according to your planned production output that you want. You can also inform us your planned production output, so that we can suggest you the needed machine quantity.

• According to your product dimension, we suggest the FAST HYDRAULIC STRETCHING MACHINE Y28-200K.
• For punching holes of couscous pot, we suggest the PUNCHING MACHINE JH21-80.

4, Our Service

5, Package And Delivery

6, FAQ

SUZHOU RILANT MACHINERY CO.,LTD is a professional enterprise that is specialized in manufacturing, exporting &importing auto machines, moulds, filter components etc.

The main business scope included as below:

1, Die casting- deburring turnkey solution

2, Filtration-turnkey solution

3, Other customized machinery & Line
