| Categories | Auto Injection Molding Machine |
|---|---|
| Brand Name: | Taihong |
| Model Number: | HJF1250 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | TT, L/C, Western Union, MoneyGram |
| Supply Ability: | 500sets/month |
| Delivery Time: | 30 days |
| Packaging Details: | Export Standard |
| Shot Weight300rams: | 3744/4530/5392/6328grams |
| Motor Power: | 110kw |
| heating Power: | 59kw |
| Machine weight: | 53tons |
| Machine Dimension: | 12.1m*2.9m*3.2m |
| name: | servo injection moulding machine |
| Company Info. |
| Ningbo Haijiang Machinery Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

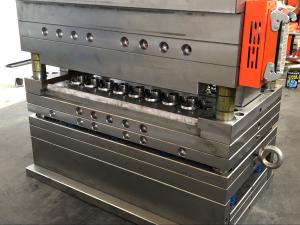

High Precision water cap mould machine , Auto Injection Molding Machine , 24 cavities cap plastic mold
Trade information:
| MOQ | 1 set |
| Mold lead time | T1 sample, about 3-10 weeks, according to the mold requirement |
| Production lead time | 2-5 weeks, according to the order Qty |
| Mold payment term | 50% T/T deposit with PO, balance 50% T/T after sample approved |
| Products payment term | 30% T/T deposit with PO, balance 70% T/T before shipment |
| Port of loading | Ningbo or Shanghai port, also can be Shenzhen port |
Characteristics
1. Adopts the imported control components, durable, safe, and low
failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent
effect of bottom sealing.
4. East to adjust different sizes of cartons, adjust quickly and
easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low
noise.
6. Use tap to seal the cartoon bottom, protected from weather,
sealing reliable.
Specification
| Injection Unit | UNIT | A | B | C | D |
| Screw diameter | mm | 100 | 110 | 120 | 130 |
| Screw L/D ratio | L/D | 23 | 22 | 20 | 18.6 |
| Shot size(theoretical) | CM³ | 4160 | 5034 | 5991 | 7031 |
| Injection weight(ps) | g | 3744 | 4530 | 5392 | 6328 |
| Injection rate | g/s | 590 | 720 | 867 | 948 |
| Injection pressure | Mpa | 211 | 174 | 146 | 125 |
| Screw speed | rpm | 100 | |||
| Clamping Unit | |||||
| Clamp tonnage | KN | 12500 | |||
| toggle Stroke | Mm | 1600 | |||
| Space Between tie Bars | mm | 1260*1160 | |||
| Max.mold height | mm | 1300 | |||
| Min.mold height | mm | 500 | |||
| Ejector Stroke | Mm | 360 | |||
| Ejector tonnage | KN | 215 | |||
| Others | |||||
| Max.pump pressure | Mpa | 16 | |||
| Pump motor power | KW | 55+55 | |||
| Heater power | kw | 59 | |||
| Machine size(L x W x H) | m | 12.1*2.9*3.2 | |||
| Machine weight | Ton | 53 | |||
| Oil tank capacity | L | 2206 | |||
How can I place an order?
Your send us inquiry, then we will send you quotation with the product’s picture, specification, price, lead time, payment term etc;
After quotation been accepted, we send you the Proforma Invoice;
You arrange deposit and send us Bank receipt;
Initial Production Stage- Inform you we have gotten the payment, we will make the 2D&3D product drawing according to your request, send you the .stp or .igs file to get your approval.
Once you confirm the product drawing, we can arrange to make the mould drawing based on your requirement.
Middle Production Stage- We start to make the plastic moulds based on confirmed drawings and confirm the estimated delivery time.
Ending Production Stage- The mould is finish and the T1 samples and video are come out then send to you. After the sampels are confirmed by yourside, you can arrange your inspector or engineer to come to test the mold in our factory again.
You arrange balance and we ship the goods. We can also accept payment term-Balance against B/L Copy or L/C payment Term etc.
Order can be finished when you receive the goods and satisfy with them.
Feedback to us about Quality, Service, Mold running Feedback & Suggestion. We will do better.
|
