| Categories | Micro USB Socket Connector |
|---|---|
| Brand Name: | HuaYong |
| Model Number: | BSC-MN20-003 |
| Certification: | CE/ ROHS /QC |
| Place of Origin: | Dong guan China |
| MOQ: | 1，000+ Pieces |
| Price: | $0.05 - $0.06 / Piece |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 20000000PCS/Month |
| Delivery Time: | About 3-7days after receipt |
| Packaging Details: | Carton |
| Color: | Black |
| Application: | PCB |
| Contact material: | Gold-plated Copper Alloy |
| Pin: | 5Pin |
| Plating: | Stainless steel shell with nickel plating |
| Rated Voltage: | 30V DC |
| Current Rating: | 1.0A/contact terminal |
| Material: | LCP |

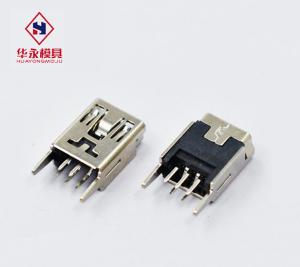

High quality Mini USB Type B Female 5 Pin DIP 2 pin Vertical Leg PCB Socket Connector
Specifications:
Electrical
1.Current Rating:1.0A/Contact terminal
2.Voltage Rating:30V DC
3.Contact Resistance:50 milliohms MAX
4.Dielectnic Withstanding Voltage: 300V AC Sea Levol
5.Insulation Resistance:100 MEGA ohms MIN
Mechanical
1.Connector Mate and Unmate Force:Mate force 3.0 kgf(MAX) Unmate force 0.7kgf(MIN)
2.Terminal Retenion:0.5kgf(MIN)
Material:
1.Housing: High Temperature UL 94V-0 LCP Black
2.Contact:Copper Alloy C2680
3.Shell:Copper Alloy C2680
Finish.
1.Contact:Plated Gold in Mating Area
Tin on Solder Tails
2.Shell:Nickel Plating
ABOUT HUAYONG
Dongguan Huayong Precision Mould Co., Ltd. was established in 2013.
Our company is a professional manufacturer of precision molds and
precision parts processing. The company has introduced advanced
mold processing equipment and testing equipment from Japan, and has
a professional team of technical personnel. Effective management
ensures the quality of mold parts and professional services.
Since its establishment, the company has won the trust of customers
with stable quality and professional technical services. Always put
customer needs first, continue to improve, and work hard for better
customers.
HUAYONG Advantage:
1.Fast action: We will reply your inquiry at first time.
2.Professional service: From inquiry ->make sample ->start
order -> inspecation->delivery
3.Good quality: We have own professional quality control team, make
sure the order quality
is completely good before shiping.Let client never worry about
quality.
4.Competitive price: We can't say our price is lowest,but we can
say our price is what you need,we are
factory price, base on our support, you will get more!
5.Fast shipment: We have fast shipment ,keep the goods reach your
side fast and safety.
