Brand Name: | JiZhong |
Model Number: | DCR-3321 |
Certification: | CE |
Place of Origin: | China |
MOQ: | 1pcs |
Price: | Negotiatable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50000pcs per month |
Delivery Time: | 5 work days |
Packaging Details: | 10pcs for each carton; 1pcs for small box; Weight: 0.6Kg |
Product:: | dvbc hd cable receiver |
Channel standard:: | DVB-C EN300 429 |
Modulation type:: | 16/32/64/128/256QAM |
Symbol rate:: | 3.6-6.952MS/s |
Video decoding:: | MPEG-2MP@ML/MPEG4SP@ASP/Divx/AVS/AVX+/Real/VC-1/H.264/H.265 |
Audio decoding:: | MPEG-1(layer1&2/MPEG-2/AAC/AC3/RA/WMA/Dolby digital plus |
Flash memory:: | 8MB |
RAM memory:: | 128MB |
DVB-C HD Cable Receiver Set Top Box With Sim Slot And Digital TV Tuner
Model NO: DCR-3321
DVB-C HD Cable Receiver Set Top Box Overview:
* It is able to receive and decode digital TV program from DVB/MPEG/H.264/H.265/AVS/AVS+;
* It is compatible with CATV net work;
* Support PVR reservation, record and decoding function;
* Simple and streightforward operation interface, variety program;
* High efficient user experience, more convenience;
DVB-C HD Cable Receiver Set Top Box Characteristics:
* Support PVR reservation and real time recodring and encoding application;
* Support time shift and watch back for external storage device;
* Support air load upgrading manually and automatically and USB etc.
* It is able to upgrade the latest software version timely;
DVB-C HD Cable Receiver Set Top Box index:
Frequency | 47-862MHz |
Channel Standard | DVB-C EN300 429 |
Modulate type | 16/32/64/128/256QAM |
Symbol Rate | 3.6-6.952MS/s |
Video Decode | MPEG-2MP@ML/MPEG4SP@ASP/Divx/AVS/AVX+/Real/VC-1/H.264/H.265 |
Video output | 1080P50(60)/1080i/720p/576p |
Audio encode | MPEG-1(layer1&2/MPEG-2/AAC/AC3/RA/WMA/Dolby digital plus |
Audio mode | L/R/STO |
CPU process speed | Main frequency@700MHz |
FLASH memory | 8MB |
RAM memory | 128MB |
Display | POW/CLOCK LED indicator |
Panel Button | Standby/channel |
RF input | British F type |
Audio output | PJ-322(L/R/CVBS) |
HDMI output | HDMI1.3b(HDCP) |
USB | USB2.0 |
IR loop out | Mini USB-RS232 |
Input voltage | DC:12V/0.8A |
Power consumption | 10W(max) |
Dimension | 112*112*24mm |

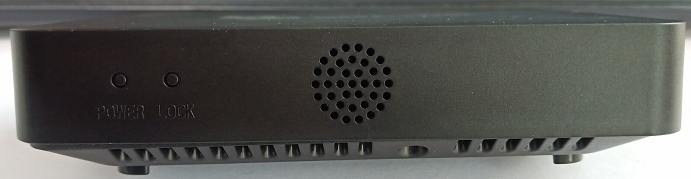

Product display: | |
Accessories for DVB-C HD Cable Receiver Set Top Box : | |
![]() |
