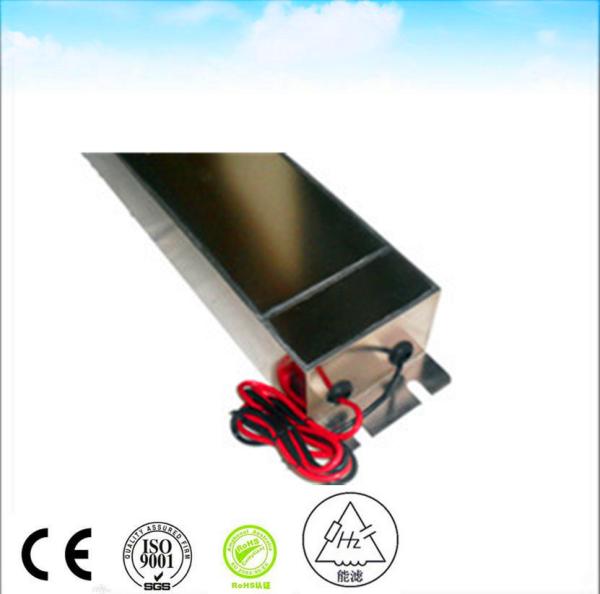

250VAC 70A Iec Ethernet Emi Rfi Ac Power Signal Line Filters Single Phase For Radio

Categories	Signal Line Filters
Model Number:	HZ-2X70C5
Place of Origin:	China
Brand Name:	nenglv
Supply Ability:	100 Piece/Pieces per Week
Packaging Details:	1 pcs in one carton the gross weight is about 20Kg
MOQ:	>=1 Pieces
Price:	$350.00
Certification:	CE RoHS
Type:	EMI Filter
Transfer Function:	Low Pass
Package Type:	Throught Hole
Nominal Center Frequency:	50/60Hz
3dB Bandwidth:	14K
Insertion Loss:	100dB
Input Impedance:	50ohm
Stopband Attenuation:	100dB
Rated Voltage:	120/250VAC
Rated Current:	70A
Operating Frequency:	50/60Hz
Application:	rf shielding room
Port:	shanghai

Contact Now

Add to Cart

Company Info.

Changzhou Haozhuo Electronic Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

250VAC 70A Iec Ethernet Emi Rfi Ac Power Signal Line Filters Single Phase For Radio

250VAC 70A Emi Power Line Filter Anechoic Chamber

General purpose,three phase four line filters
Excellent interference suppression performance for CM and DM
High quality components,high performance/cost
Available for power electronics and other industrial noise environments.
Various connection: fast on/bolt/wire terminals
Made to order acceptable
ODM/OEM welcome

Emi Power Line Filter Product Description

RATED VOLTAGE	250 VAC
RATED CURRENT	70 A
OPERATIONAL FREQUENCY	50 60 Hz
Voltage Drop	Less than 1V
Overload	140% of rated current for 15 minutes
Harmonic Distortion	Less than 2% @ full rated current
Leakage Current	≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage	1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance	As Per MIL-STD-202 Method 202
Terminal Strength	As Per MIL-STD-202 Method 211
Temperature Rise	As Per MIL-F-15733
Insertion Loss	≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification	25/070/21

Rated current	Rated voltage	Operating frenquency	temperature range	AC/DC
8A-180A	275/480VAC	50/60Hz	25/100/21	AC
50A	275/480VAC	50/60Hz	25/100/21	AC
30A	275/480VAC	50/60Hz	25/100/21	AC
36A	275/480VAC	50/60Hz	25/100/21	AC
6A-200A	275/480VAC	50/60Hz	25/100/21	AC
8A-180A	275/480VAC	50/60Hz	25/100/21	AC
6-200A	275/480VAC	50/60Hz	25/100/21	AC
1-100A	275/480VAC	50/60Hz	25/100/21	AC

We are a professional and famous EMI filter manufacturer. Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well. Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
