| Categories | Open Frame LCD Monitor |
|---|---|
| Brand Name: | Shinho |
| Model Number: | SL17 |
| Certification: | CE, FCC, RoHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 piece |
| Price: | Negotiation |
| Payment Terms: | T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram, |
| Packaging Details: | 1 piece/gift box weight :4.2kg gift box size:53*47*18cm |
| Panel size: | 17'' |
| Resolution: | 1280*1024 |
| Touchscreen Type: | Project Capacitive Touch (10 points ) |
| Working voltage: | DC 12V |
| Inputs: | VGA , DVI |
| Brightness: | 1000 nits,sunlight readable |
| IP grade: | front panel IP65 waterproof |
| Mounting: | open frame kits for mounting,embedded mounting |
| Company Info. |
| Shenzhen Shinho Electronic Technology Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Flat panel front IP65 17 Inch Capacitive Touch Open Frame LCD Monitor
Features
1. 10MM aluminium alloy bezel, open frame kits for mounting in machine.
2. 17 inch LCD industrial panel.
3. 1000 nits,sunlight readable.
4. front panel IP65 waterproof.
5. Adopt multi-points PCAP touch panel , high sensitive and
fast-response.
6. High performance mainboard, 7x24 continuous operation.
17 Inch Capacitive Touch Monitor Applications
Outdoor kiosk
laboratory
Self service vending machine
sports lotteries
Customer Feedback Kiosk
Automatic pay station
Customization Service
1. resistive touch,infrared touch
2. can be produced with widescreen, 17.3'' ,1920*1080 resolution.
2. Anti-glare.
3. Auto dimming.
4. 24V power with Phoenix terminal.
5. Color: Silver ,Black ,White.
6. Size also can be customized according to your machine.
7.Can add your logo
8.COM RS232 for touch.
9. 400 nits for indoor use.
10. Suitable with Wide temperature working environment.
Specification
| Model:SL17 | |
| LCD panel | |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 3.7kg |
| Gross weight | 4.2kg |
| Product Dimension | 42.74×35.6×5.15cm |
| Packing size | 53*47*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable,embedded screws,user
manual, warranty card |
| Other | |
| Mounting | open frame |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Pictures

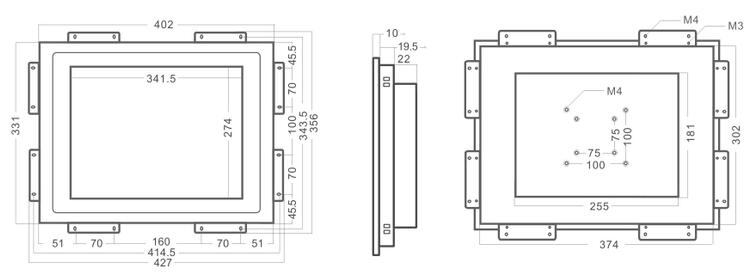

Drawing
|
