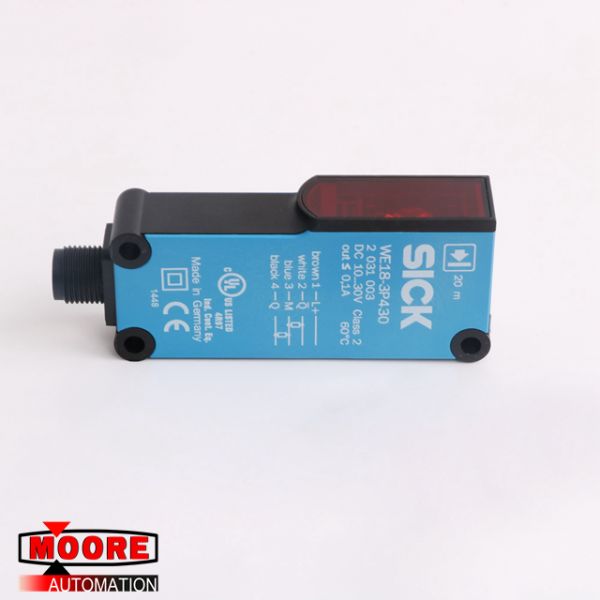

WE18-3P430 SICK Photoelectric Switch

⇒ Click here for good price WE18-3P430

Product Details

Detailed technical data

WE18-3P430 Features

Sensor/ detection principle Through-beam photoelectric sensor

Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm

Housing design (light emission) Rectangular

Sensing range max. 0 m ... 20 m

Type of light Visible red light

Light source LED 1)

Light spot size (distance) Ø 450 mm (15 m)

Angle of dispersion 1.5°

Wave length 645 nm

Adjustment Potentiometer, 1 turn

WE18-3P430 Mechanics/electronics

Supply voltage 10 V DC ... 30 V DC 1)

Ripple < 5 Vpp

Power consumption, sender < 45 mA 3)

Power consumption, receiver < 35 mA 3)

Switching output PNP

Output function Complementary

Switching mode Light/dark switching

Output current Imax. 100 mA

Response time < 500 µs 4)

Switching frequency 1,000 Hz 5)

Angle of reception 2°

Connection type Male connector M12, 4-pin

Power consumption, sender < 45 mA 3)

Power consumption, receiver < 35 mA 3)

Switching output PNP

Output function Complementary

Switching mode Light/dark switching

Output current Imax. 100 mA

Response time < 500 µs 4)

Switching frequency 1,000 Hz 5)

Angle of reception 2°

Connection type Male connector M12, 4-pin
