| Categories | Brushless DC Motor |
|---|---|
| Brand Name: | SMART AUTOMATION |
| Model Number: | BL Series |
| Certification: | ROHS CE ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 100 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000PCS |
| Delivery Time: | 15 DAYS |
| Packaging Details: | STANDARD EXPOTR PACKAGE |
| Torque: | upto 8Nm (upto 120Nm if with gear head) |
| Speed: | Customizable 1000rpm 3000rpm 4000rpm |
| Current: | customed |
| Size: | 28mm 30mm 36mm 42mm 52mm 57mm 60mm 63mm 74mm 80mm 86mm 110mm 130mm |
| Gear Reducer: | Option Planetary and Worm Gearbox |
| Encoder: | Optical Magnetic Encoder Integrated |
| Brakes: | Optical Magnetic Encoder Integrated |
| Company Info. |
| CHANGZHOU SMART AUTOMATION MOTOR MANUFACTURING CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Good Quality Brushless DC Motors / BLDC Gear Motors
We make Customizable voltage, dimension, performance, shaft, mounting...etc
We make integrated controller, encoder, gearbox, brake...etc
Please Send Inquiry, and We Will Get You the Best and Most Cost Effective Solution/Proposal.
| Diameter | 28mm 36mm 42mm 52mm 57mm 60mm 63mm 70mm 74mm 80mm 86mm 90mm 110mm 130mm |
| Rated voltage | 10v 12v 18v 24v 36v 48v up to 380vdc |
| Rated torque | Up to 10Nm (if with gearbox up to 120Nm) |
| Rated speed | 1rpm Up to 15000rpm |
| Rated power | 10w Up to 2000w |
| Protection class | Option IP00 40 50 54 56 66 67 |
| EMI | EMI suppression available |
| Thermal | Thermal protection available |
| Gearbox | Option with planetary or worm gearbox assembled |
| Brake | Option with electric brake assembled |
| Encoder | Option with Optical or Magnetic encoders |
| Controller | Option with controller integrated |
| Halls | With halls or hall-less |
Below Are Only Some of Our Typical Models.
Pls Contact Us for More Models or Customized Motors.
(All are Customizable Please Send Inquiry )
Size 36mm
Size 42mm Round Type
Size 42mm x 42mm Square
Size 57mm
Size 60mm
Size 70mm
Size 80mm Round Type
Size 86mm x 86mm Square
Size 86mm Round
Size 110mm
BLDC Gear Motors
Options :
Integrated With Planetary Worm Gearbox / Encoder / Brake / Controller
Below are typical gearbox
(feartures: helical gear low noise, long life, high torque design)
42mm planetary gearbox
56mm planetary gearbox
Customized Products and OEM / ODM
|
Professional Manufacturer for Electrical Brushless DC Motor Customized Voltage Performance Specification OEM ODM
57BL-IE Series Driver Integrated Brushless Dc Motor High Torque 24v BLDC Motor With Integrated Speed Controller 24 volt
Size 63mm 63RBL Series Brushless Dc Motor Rated Torque Up To 0.8Nm to Replace Dunker Motors 50 watt 100 watt 200 watt
42RBL 42mm Cylindrical Body DC Brushless Motor BLDC Motors Option With Gearhead Brake Encoder Assembled
Dia. 57mm 57BL 57HBL Series Nema 23 Brushless DC Motor High Torque Low Cost 1500rpm 3000rpm 4000rpm 50w 100w 150w 200w

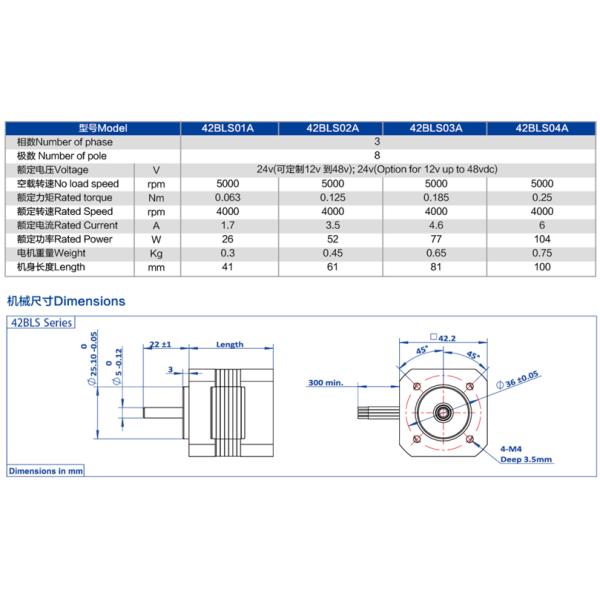

42BLS Size 42mm Square Flange Rectangle Nema 17 Brushless Dc Motor 12volt 24volt 36volt 48volt 50W 100W 3000rpm 4000rpm
Square Size 86mm 12V 24V 48V upto 320vdc Nema 34 BLDC Motor 86BLS 3000rpm 300w 400w 500w 800w Replace Fulling Motor
Size 80mm 80RBL 3 Phase Electric DC Brushless Motor BLDC Motor 12v 24v 36v 48v Option with Integrated Driver PWM Control
80x80mm 12 v 24 v 36 v 48 v DC Electric Brushless Motor High Torque High Speed IP54 IP56 IP65 Water-proof 150w 200w 300w
Size 110mm 110BL series High Power Heavy Duty Brushless DC Motor BLDC 500 800 watt 1000 watt 2000 watt 24v 48v upto 320v
