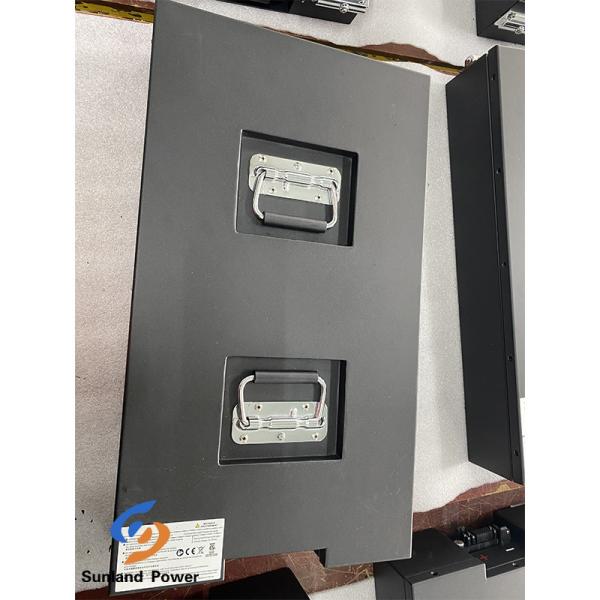

FLAT 48V 42AH IFR32700 16S7P LIFEPO4 BATTERY PACK FOR ROBOT CAN SUPPORT 80A WORKING CURRENT
Feature:
1. Flat
2. It has handles for easy handling.
3. Metal case
4. IP65
5 Weight:18KG
FLAT 48V 42AH IFR32700 16S7P LIFEPO4 BATTERY PACK FOR ROBOT CAN SUPPORT 80A WORKING CURRENT
Parameter
| No. | Items | Specifications | Remark |
1 | Capacity for assembled cell discharging by 0.2C | ≥42Ah | Standard discharging method |
2 | Battery Voltage | 51.2V | Delivery Voltage, Within 10 days from Factory |
3 | Standard charge condition | Charge with 0.2C constant current and 58.4V constant voltage, charge to 58.4V,continue charging till current decline to ≤0.01C | Charge volage58.4V±0.05V Charge current:0.2C |
4 | Maximum continuous charge current per pack | Long time constant current charging current ≤21A | |
5 | Standard discharging method | 0.2C constant current discharge to 40V, | |
Maximum continuous discharge current per pack | Long time working current 42A | ||
6 | Internal Impedance | Assemblage Impedance ≤160mΩ | Measure the Red and black wire of the connector after assembling. |
| 7 | Bluetooth function | YES |
FLAT 48V 42AH IFR32700 16S7P LIFEPO4 BATTERY PACK FOR ROBOT CAN SUPPORT 80A WORKING CURRENT
Picture:
Notice for Designing Battery Pack
1. Pack toughness
Battery pack should have sufficient strength and the LIR cell inside should be protected from mechanical shocks.
2. Cell fixing
The LIR cell should be fixed to the battery pack by its large surface area.
No cell movement in the battery pack should be allowed.
3. Inside design
No sharp edge components should be insides the pack containing the IFR cell.
|
