| Categories | Fiber Optic Attenuator |
|---|---|
| Brand Name: | ZGT |
| Model Number: | ZZTAT-SCA-MF |
| Certification: | ROHS,UL |
| Place of Origin: | SHENZHEN,CHINA |
| MOQ: | 100 PCs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300K/M |
| Delivery Time: | 3-7days |
| Packaging Details: | 1. Plastic tray 2. OEM on customer’s request |
| Standards: | Telcordia GR-326, IEC, TIA/EIA,UL |
| Application: | Telecom network,data center, CATV, FTTX project |
| Compatibility: | Compatible with all standard fibre optic equipment and connectors |
| Materials: | All new and RoHS compliant |
| Company Info. |
| ZGT Optical Comm Limited |
| View Contact Details |
| Product List |
You are here: Home > Products > Fiber optic Attenuator

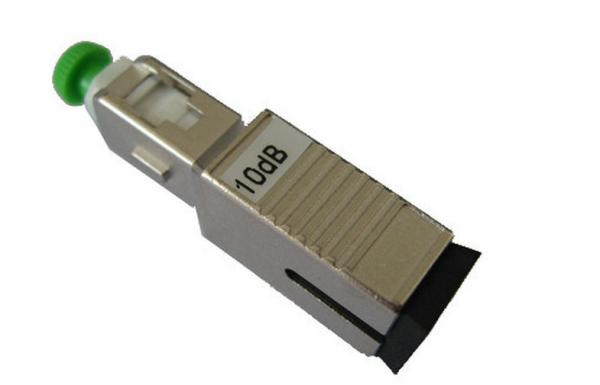

Serial Number: ZZTAT-SCA-MF
Description:
ZGT provide fixed attenuators and variable attenuators, with different connectors such as SC,
SC/APC, LC, LC/APC, FC, FC/APC, ST, MU, E2000, E2000/APC and Hybrid Attenuators. There
are adapter version and plug in version, attenuation range from 1dB to 30dB. The monthly
production capacity is 300k, all products are designed and controlled under IEC standard,
meet the requirement of Telcordia GR-326 and TIA/EIA as well.
Applications:
Telecommunication network
CATV system
Data Center
Local Area Network
Active/Passive device
FTTH and FTTX
Competitive Advantage:
Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
Low Insertion Loss.
RoHS Compliance
Customized design and production.
Optical Performance
Parameter | Description |
Color | Blue, green or tailor made |
Return Loss | ≥50 (PC) |
≥55 (UPC) | |
≥65 (APC) | |
Attenuation | From 1dB to 30dB |
Tolerance | ±0.5dB(1～10dB), ±1.0dB(11～30dB) |
Durability | 1000 times |
Anti Pulling Force | 200~600G |
Operating Temp(℃) | -40C to +85C |
Storage Temp(℃) | -40C to +85C |
|
