| Categories | Trimmer Potentiometer |
|---|---|
| Brand Name: | SANNI |

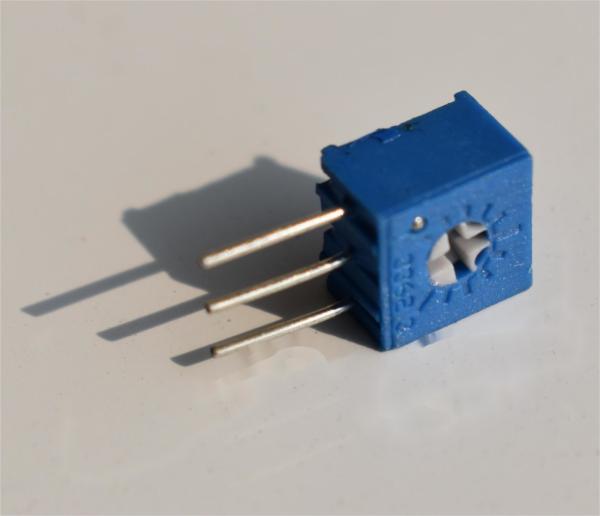

| Model Number: | RI3362M |
| Place of Origin: | China |
| MOQ: | 2000PCS |
| Price: | USD0.08~0.12per pc |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs/Month |
| Delivery Time: | 25 Working days |
| Packaging Details: | 2000PCS/BOX |
| Model NO.: | RI3362M |
| Shape: | Square |
| Resistor material: | Cermet |
| Turns: | Single-turn |
| Resistance Taper: | Linear |
| Adjustment: | Side adjust |
| Company Info. |
| Dongguan SANNI Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Single-Turn
Cermet
Sealed
Industrial
Miniature package
Tape and reel packaging available
RoHS Compliant
What is Trimmer Potentiometer
Trimmer potentiometer is a resistance that can be adjusted or "trimmed" to a precise resistance through screw adjust. This type of resistor is often used in circuits because it allows adjustment of circuit performance. Use a tool (for example a screwdriver) to turn the dial or knob on the device to adjust. Trimmer potentiometers symbols are shown below.
Product Characters
| 1.Physical Characteristics | |
| Mechanical Angle | 270 ° nom. |
| Terminals | Solderable pins |
| Torque | 3.0 oz-in (3.3 g.cm) max. |
| Stop Strength | 7.0 oz-in (7.88 g.cm ) min. |
| 2.Electrical Characteristics | |
| Adjustability Voltage divider | ±0.05% |
| Total resistance (standard resistance range) | 100Ω-3MΩ |
| Total resistance tolerance | ±10% |
| Residual resistance(Absolute minimum resistance) | 1% or 2ohms |
| Insulation resistance | 500vdc. 1000mΩ min. |
| Rheostat | ±0.15% |
| Dielectric Strength | 80,000 feet:350 vac;Sea Level:900 vac, |
| 3.EnvironmentalCharacteristics | |
| Adjustment Angle | 240o |
| Power Rating (300 volts max.) | 70oC:0.5W,125oC:0W |
| Temperature range | -55oC to +125oC |
| Temperature Coefficient | ±100 ppm/°C |
| Load Life | 1,000 hours 0.5W@ 70 °C (3 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV) |
| Rotational Life | 200 cycles (4 % ΔTR; 3 % or 3 ohms,whichever is greater, CRV) |
Our Advantage
1.Design and prototype and automation basis in Dongguan which is the manufacturing center of South China.
2.10+ dedicated and experienced engineers in R&D department.
3.Manufacture Center in Sichuan Province which is located Yangzi River wharf and Chongqing Airport .
4.10+ production lines, 100+ experienced workers.
5.Help customers quickly transfer their ideas into mass production solutions, and complete prototype design, development and verification.
|
