Optical Grade Fused Silica Optical Plano Lens For High-Precision Imaging Systems

Categories Optical Glass Lens
Place of Origin: Shanghai, China
Brand Name: LONGWAY
Model Number: LW1609201453
Packaging Details: electrolytic capacitor paper,foam,carton
Supply Ability: 80000 Pieces per Month
MOQ: 500 pieces
Price: NEGOTIATION
Certification: ISO9001
Payment Terms: T/T,Western Union
Structure: Plano-convex
Surface: Optical grade
Transmission: over 90%
Coating: available
Application: Optics and laser
OEM: available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

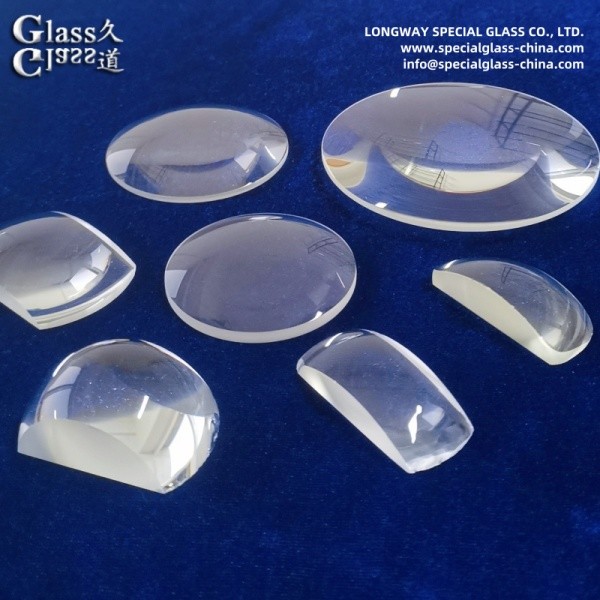

Optical Grade Fused Silica Optical Plano Lens For High-Precision Imaging Systems

Optical Grade Fused Silica Optical Plano Lens For High-Precision Imaging Systems

Material‌:

  • ‌Optical Grade Fused Silica‌: This lens is crafted from optical grade fused silica, a material known for its exceptional optical properties and durability. Fused silica is a synthetic glass with high purity and low thermal expansion, making it ideal for precision optics.‌1

‌Properties‌:

  • ‌High Transparency‌: The lens exhibits excellent transparency across a wide spectral range, allowing for efficient transmission of light.
  • ‌Low Dispersion‌: It has a low dispersion coefficient, ensuring minimal chromatic aberration and providing clear, sharp images.
  • ‌High Thermal Stability‌: Fused silica has a high melting point and excellent thermal stability, making the lens resistant to thermal distortion and suitable for use in high-temperature environments.
  • ‌Chemical Resistance‌: The material is highly resistant to chemicals, ensuring the lens maintains its optical properties even in harsh environments.

‌Functions‌:

  • ‌Image Formation‌: The primary function of the lens is to form clear, high-resolution images by focusing light onto an imaging sensor or film.
  • ‌Aberration Correction‌: The lens is designed to minimize aberrations, such as spherical aberration and coma, ensuring distortion-free images.
  • ‌Light Transmission‌: It efficiently transmits light, making it suitable for applications requiring high light throughput.

‌Applications‌:

  • ‌High-Precision Imaging Systems‌: The lens is ideal for use in systems such as scientific cameras, medical imaging equipment, and industrial inspection systems where high resolution and image quality are critical.
  • ‌Astronomical Telescopes‌: Its low dispersion and high thermal stability make it suitable for use in astronomical telescopes, where precise imaging of celestial objects is required.
  • ‌Machine Vision‌: In automated inspection and quality control systems, the lens enables accurate and reliable image capture and analysis.
  • ‌Laser Systems‌: Due to its high transparency and resistance to thermal distortion, the lens is also suitable for use in laser systems, including laser cutting, welding, and marking.

In summary, the Optical Grade Fused Silica Optical Plano Lens is a versatile and high-performance component for high-precision imaging systems. Its exceptional material properties, combined with its functions and applications, make it an indispensable tool in a wide range of scientific, medical, industrial, and astronomical applications. Whether used in research, healthcare, quality control, or space exploration, this lens delivers outstanding performance and reliability.

ItemOptical plano lens
MaterialOptical glass, Qurartz glass, Pyrex, borosilicate glass, Float glass
Diameter Tolerance+0/-0.15 mm
Thickness Tolerance+/-0.15mm
Processedby grinding, polishing
Surface Quality80/50,60/40,40/20
Material Qualityno scratches and air bubble
Transmissionabove 90%
Chamfer0.1-0.5 mm x 45°
Surface CoatingAvailable
UsagePhotography, Lighting system,Laser etc.
