7 Inch TFT Resistive Touch Screen 800X480 Touchscreen Display Module 300 Cd/M2

Categories	TFT Resistive Touch Screen
Brand Name:	AISON
Model Number:	Z070TN92-T
Certification:	ISO9001 / ISO14000/ROHS
Place of Origin:	Guangdong,China
MOQ:	1
Price:	Negotiable based on quantity
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month
Delivery Time:	7 working days
Packaging Details:	Carton/Blister Package
Product:	7 inch Resistive Touch Screen
Resolution:	800x480
Module Size:	164.9100.06.9 mm
Active area:	154.08 x 85.92mm
Interface Type:	24 bit RGB
Luminance:	300 cd/m2
Operating Temperature:	-20~70℃
Storage Temperature:	-30~80℃
View Direction:	TN,12 O'clock

Contact Now

Add to Cart

Company Info.

Aison Technology (HK) Co.,Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

7 Inch TFT Resistive Touch Screen 800X480 Touchscreen Display Module 300 Cd/M2

7 Inch TFT Resistive Touch Screen 800X480 Touchscreen Display Module 300 Cd/M2

General Description

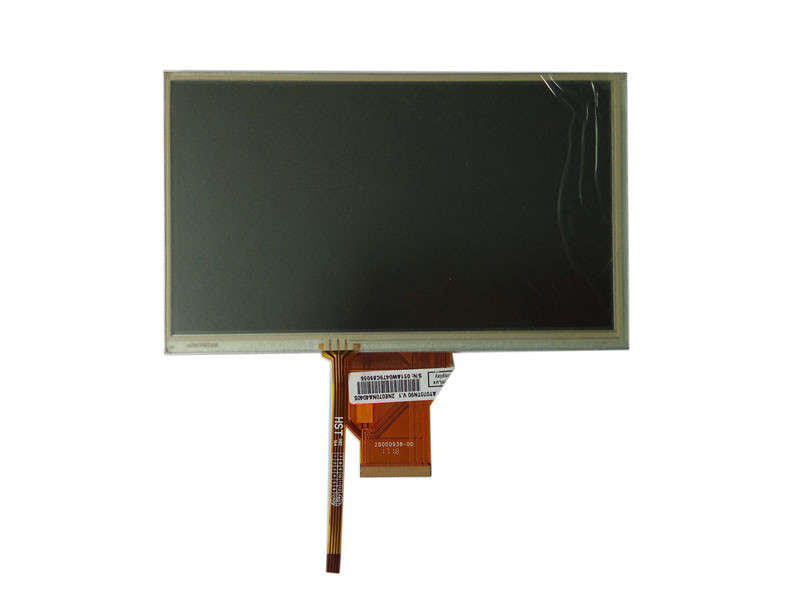

Introducing the Z070TN92-T, a 7-inch TFT Display Module designed to deliver exceptional performance and versatility. This 7-inch TFT Display is a 7-inch LCD module that integrates a 7-inch resistive touch screen, offering a seamless combination of clarity and interactivity. With a WVGA resolution of 800x480 pixels, the display provides sharp and vibrant visuals on its 7-inch TFT-LCD screen.

The Z070TN92-T is powered by EK79713CA and EK73202AB2 driver ICs and is compatible with a 24-bit RGB interface, ensuring high-quality image rendering. It features a typical brightness of 300 nits, delivering clear visibility in various lighting conditions. The module operates on a supply voltage (VCC) ranging from 3.0V to 3.6V, with a typical value of 3.3V, making it adaptable to different power configurations.

With a viewing angle of 12 o'clock and gray scale inversion at 6 o'clock, the Z070TN92-T offers a 16:9 aspect ratio, providing a balanced and immersive display experience. Its contrast ratio of 800:1 (typical value) ensures vivid colors and sharp details. The module is designed to operate within a temperature range of -20°C to +70°C and can be stored at temperatures from -30°C to +80°C, making it suitable for diverse environmental conditions.

This 7-inch TFT Display is a versatile solution for a wide range of applications, including embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products. Its compact design, advanced functionality, and robust performance make it an ideal choice for developers and manufacturers seeking a reliable and high-quality display solution.

General Data

Model Name	7 inch RTP TFT LCD Module
Resolution	800(RGB)480
Model Size (WHT)mm	164.91006.9 mm
Display Area (W*H)mm	154.08 x 85.92mm
Interface	RGB
Display Type	Normally White TN,Transmissive
Viewing	12:00 o'clock
Brightness	300 cd/m2
Pin number	50
Interface	RGB
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

Product Details

TFT Applications:

This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.
