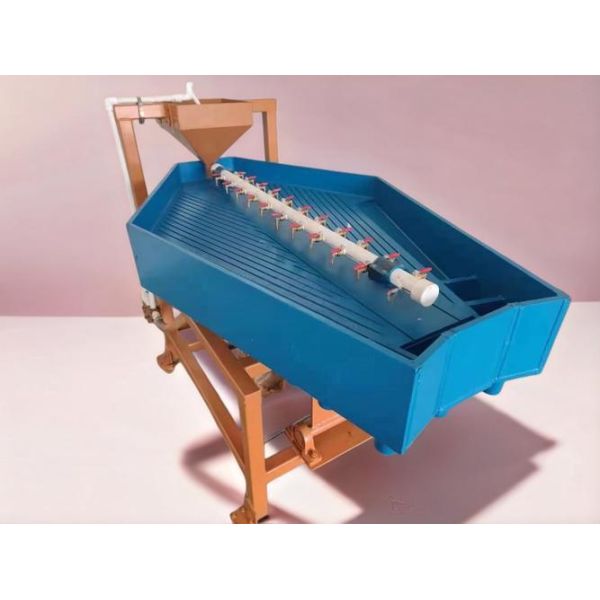

Gold Gravity Separation Gemini Table Hard Rock Gemini Shaker Table

Hard rock gold gravity separation table

1.Product Introduction Gold Ore Processing Equipment

Gemini 说

2.Application Gold Ore Processing Equipment

• Hard-Rock Processing Plants: Acts as the core equipment in gravity circuits for roughing, scavenging, or cleaning ground ore to maximize total recovery.

• Pre-concentration: Removes bulk gangue before downstream processes like flotation or cyanidation, reducing the volume to be treated and improving overall economic efficiency.

• Fine Gold Capture: Exceptionally efficient at recovering fine gold particles in the 0.02–0.5 mm range, outperforming many traditional methods.

• Small to Medium Mines: Ideal due to its relatively simple structure and low capital/operating costs.

• Tailings Re-treatment: Used to recover residual fine gold from historical tailings ponds.

3.Working Principle Gold Ore Processing Equipment

• Feeding and Wetting: The ore pulp (typically 15–30% solids) resulting from crushing and grinding is distributed uniformly onto the inclined deck.

• Stratification and Transport: The deck is driven by a mechanism (such as a crank-and-link or electromagnetic drive) that produces a differential reciprocating motion. Simultaneously, a thin film of transverse wash water flows across the deck.

• Density Separation: Under the combined forces of mechanical motion and water flow, particles stratify by density. The densest gold particles settle to the bottom-most layer against the deck and migrate diagonally toward the concentrate end.

• Product Discharge:

  • Concentrate: High-grade gold is discharged from the concentrate port at the end of the deck.

  • Middlings & Tailings: Lower-density materials are discharged from the middle and end sections.

  • Optimization: Separation can be fine-tuned by adjusting the longitudinal slope, transverse tilt, water flow, and vibration frequency/amplitude.

4. Advantages Gold Ore Processing Equipment

• High Recovery Rate: For well-liberated hard-rock gold, recovery rates can reach 85%–95%, with superior performance in capturing fine and ultra-fine gold.

• Low-Cost Operation: Compared to chemical-heavy processes, it consumes very little energy (typically 1–5 kW motors) and zero reagents, drastically lowering OPEX.

• Environmentally Friendly: Uses only water and physical force. It eliminates the need for toxic chemicals like cyanide or mercury, minimizing environmental risk.

• Intuitive & Durable: The separation process is visible on the deck, allowing operators to monitor performance in real-time. Maintenance requirements are minimal compared to complex flotation cells.

• High Enrichment Ratio: Capable of concentrating gold from a few grams per ton in the feed to thousands of grams per ton in the concentrate.

5..Our Solutions

Henan Staurk Machinery Co., Ltd. is headquartered in Zhengzhou, Henan Province. With a leadership team boasting over 20 years of industry expertise, we are a premier enterprise specializing in the R&D, manufacturing, and sales of large and medium-sized mining, metallurgical, and construction machinery.

Our comprehensive product portfolio encompasses dozens of series and hundreds of specifications, categorized into four core industrial pillars:

• Gold & Mineral Processing: We provide complete Gold Ore Processing Equipment solutions, including advanced Gold CIL & CIP Plants for chemical extraction. For gravity separation, we offer high-precision Gold Concentrators, Shaking Tables, and specialized Alluvial Washing Equipment for placer gold recovery.

• Calcination & Grinding: High-efficiency Energy-Saving Ball Mills (optimized for Spodumene/Lithium ore), large rotary kilns, industrial dryers, and complete production lines for cement and lime.

• Crushing & Sand Making: Heavy-duty Jaw Crushers, Impact Crushers, Cone Crushers, and VSI Sand Making Machines (Impact Crushers).

• Screening & Conveying: Vibrating Feeders, high-performance Vibrating Screens, Sand Washing Machines, and integrated Belt Conveyor systems.

These complete sets of equipment are extensively utilized globally in mining, chemical engineering, metallurgy, and sustainable construction (including Concrete Recycling).

Staurk Machinery has built a formidable international presence, exporting to more than 20 countries and regions, including France, Canada, Australia, Russia, Uzbekistan, UAE, Vietnam, Indonesia, Chile, Kenya, and the Philippines. Our commitment to high-yield, energy-saving, and reliable solutions has earned us a stellar reputation in the global market.
