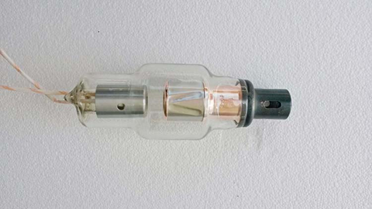

H33 Series 160kV High Power X-ray Glass Tube for Airport Baggage Scanner Security System
Specifications for the Glass tube for airport x ray safe examination inspection system
Note: Radiator type optional:Φ52mm×39mm,Φ65mm×39mm
Number | Model | Technical parameters | Beam angle | Size | ||||
Tube voltage (kVp) | Tube current (mA) | Focus sport(mm) | Filament voltage(V) | Filament current(A) | ||||
1 | H33A | 160 | 2 | 0.8×0.8 | 5.3 | 4.4 | 40°+5° | Glass: Φ68mm,Total length:190mm |
2 | H33B | 160 | 4 | 0.3×0.8 | 4 | 3.5±0.2 | 110°×4° | Glass:Φ68mm, Total length:190mm |
3 | H33C | 160 | 4 | 2.5×0.8 | 3.5±0.2 | 3.7±0.2 | 110°×20° | Glass:Φ68mm, Total length:190mm |
4 | H33D | 160 | 2 | 0.8×0.8 | 3.5±0.2 | 3.7±0.2 | 80°×60° | Glass:Φ68mm,Total length:190mm |
5 | H33E | 160 | 4 | 0.8×0.8 | 3.5±0.2 | 3.7±0.2 | 60° | Glass:Φ68mm,Total length:190mm |
6 | H33F | 160 | 5 | 0.8×0.8 | 3.5±0.2 | 3.7±0.2 | 40°×60° Double angle | Glass:Φ68mm,Total length:190mm |

|
