Magnetic connector 4pin male and female magnetic pogo pin connector with 90 degrees angle

Magnetic connector 4pin male and female magnetic pogo pin connector with 90 degrees angle

Magnetic connector 4pin male and female magnetic pogo pin connector with 90 degrees angle
Magnetic connector 4pin male and female magnetic pogo pin connector with 90 degrees angle
Categories Magnetic Connectors
Brand Name: UPE
Model Number: 4P-2.54PH-4.0H
Certification: ISO9002
Place of Origin: China
MOQ: 5000
Price: $1-$5
Payment Terms: T/T
Supply Ability: 5KPCS/Day
Delivery Time: 12-15 working days
Packaging Details: PE bags
Name: Magnetic Connectors
Material: PA9T, Brass C3604, SUS304, NdFeB N52
Volatge: 12V
Current: 2A
Mechanical life: 10000 cycle Min.
Force: 35±10gf at working height
Contact resistance: 50mΩ Max (PIN)
Salt spray test: 48H
Withstanding Higt Tenperature: 260°C
Operational Temperature: -40~85°C
Color: Black, yellow
Contact Now
Company Info.
Union Precision Electronic LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Magnetic connector 4pin male and female magnetic pogo pin connector with 90 degrees angle

4-Pin Magnetic Pogo Pin Connector with 90° Angle
Professional-grade 4-pin male and female magnetic pogo pin connectors featuring a right-angle design for optimal space utilization and reliable connectivity.
Material Composition
  • Plunger (Contact Pin): Brass C3604
  • Barrel: Brass C3604
  • Spring: Stainless Steel (SUS304)
  • Housing: High-Tech Plastic (PA9T)
Plating Specifications
Plunger & Barrel Plating: 1-3 micro-inches Gold over 50 micro-inches Nickel
Gold flash ensures low contact resistance while nickel under-plating provides durable barrier protection.
Electrical Characteristics
  • Rated Current: 2 Amperes (DC)
  • Rated Voltage: 12 Volts (DC)
  • Contact Resistance: 50 milliOhms Maximum
Mechanical Properties
  • Operating Force: 35 ±10 grams-force at working height
  • Durability: 10,000 cycles minimum
Environmental & Thermal Performance
  • Operational Temperature: -40°C to +85°C
  • Withstanding Temperature: 260°C (suitable for reflow soldering)
Technical Specifications
Pin Count4-pin or customized
Pitch2.54mm
TypeRight angle
Pogo Pin MaterialBrass
Housing MaterialPA9T
Magnet MaterialNeodymium iron boron
Magnet GradeN52 (As requirement)
Mechanical Life10000 cycle Min.
Current2.0A
VoltageDC 12V
Contact Resistance50mΩ Max (PIN)
Salt Spray Test48H
Withstanding High Temperature260°C
Operational Temperature-40°C to +85°C
CertificationROHS or REACH compliant
Testing100% open and short test
Product Images
4-Pin Male Magnetic Connector
4-Pin male magnetic pogo pin connector with right-angle design

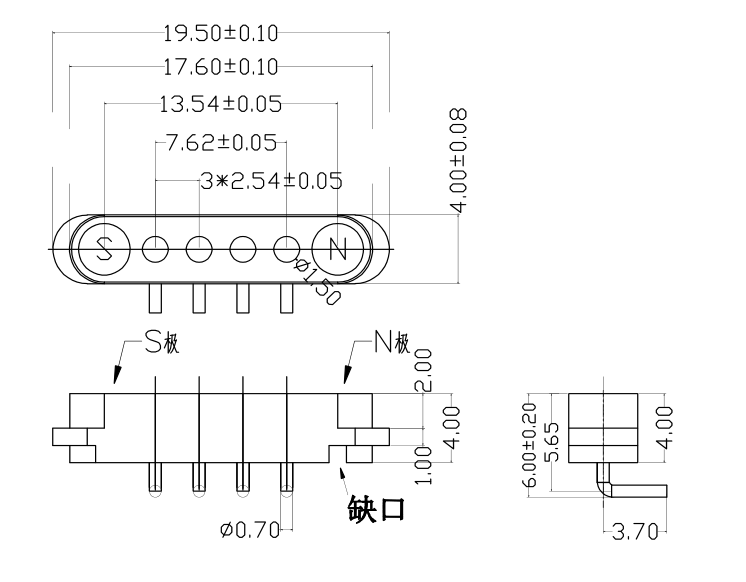

4-Pin Female Magnetic Connector
4-Pin female magnetic pogo pin connector with right-angle design
Product Advantages
  • Automatic adsorption connection for user-friendly operation
  • Anti-fall protection prevents device damage during disconnection
  • Extended lifespan: 100,000-200,000 cycles
  • Waterproof design: Female end provides IPX8 dustproof and waterproof protection
  • Fast charging capability: 5A-10A design for large current transmission
  • Customizable appearance to match application device design
  • Anti-short circuit structure with foolproof protection
  • High-frequency signal transmission replaces traditional USB 2.0, HDMI 1.3 functions
Why Choose Our Magnetic Connectors
  • Professional customization service
  • Fast sample production capability
  • Strict quality control system
  • Processing with imported components
  • High-precision test equipment
  • Reasonable cost control procedures
  • Product environmental standards compliance
Application Examples
Magnetic connector application examples in various industrial and consumer devices
Custom Design Services
UPE design service capabilities for custom magnetic connector solutions
Ordering & Shipping Information
Payment Methods: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days
Production Lead Time: 10-15 working days
Markets Served: America, Europe, Asia, South Africa
Trade Term: EXW
Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
Packaging & Shipping
Secure packaging and shipping methods for magnetic connectors
