| Categories | Transmission Meter |
|---|---|
| Certification: | CE |
| MOQ: | 1 |
| Price: | 305 |
| Model NO.: | LS127C |
| Warranty: | 1 Year |
| Spectral Response: | 230nm-280nm, λp=254nm |
| Measuring Range: | 0 - 20000 μw/Cm² |
| Resolution: | 0.1 μw/Cm² |
| Measuring Accuracy: | ±10 % |
| Bluetooth Transmission Distance: | 50 Meters (Open Space) |
| Power Value Storage Interval: | 1s /10s / 60s (Optional) |
| Recording Period: | 10min / 100min / 600min |
| Transport Package: | Carrying Case |
| Specification: | CE, ROHS |
| Trademark: | BESTONE, Linshang |
| Origin: | China |
| Company Info. |
| Shenzhen Bestone Industrial Co.Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

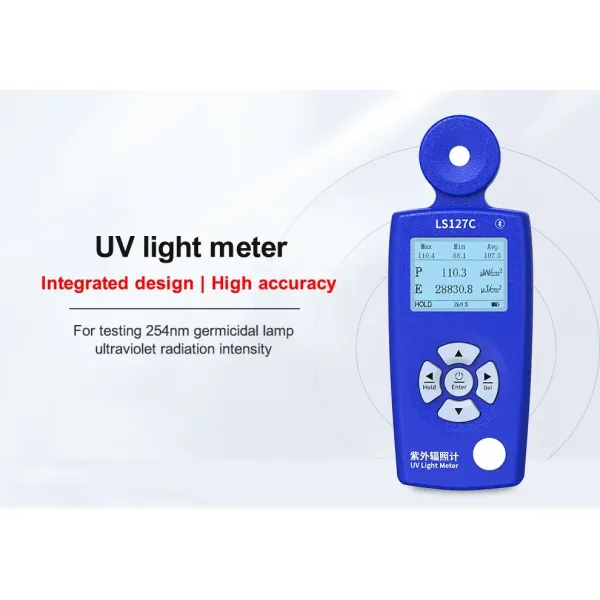

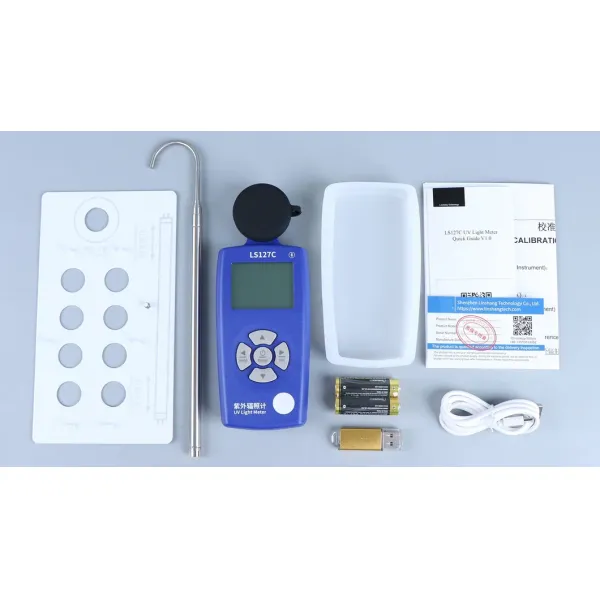

LS127C 254nm UVC Ultraviolet Radiation Meter UV Radiometer UVC Intensity Measurement UV Light Meter Radiometer
1. Professionally used for 254nm germicidal lamp ultraviolet
radiation intensity detection.
2. Cell phone APP real-time monitoring, away from UV radiation
damage.

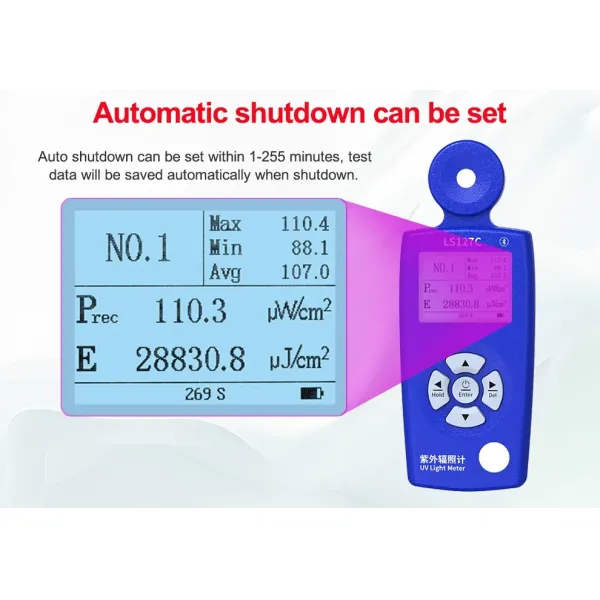

3. Auto shutdown can be set within 1-255 minutes, test data will be
saved automatically when shutdown.

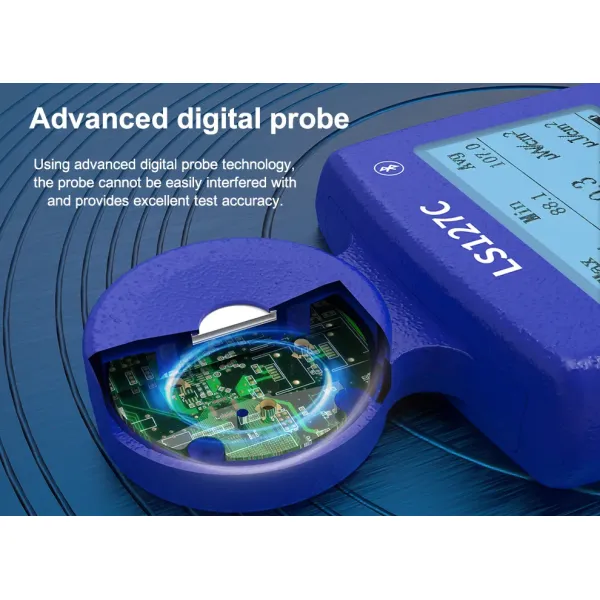

4. The uvc tester adopts high-precision UVC filters and professional UV sensors to
eliminate the influence of UVA and UVB.

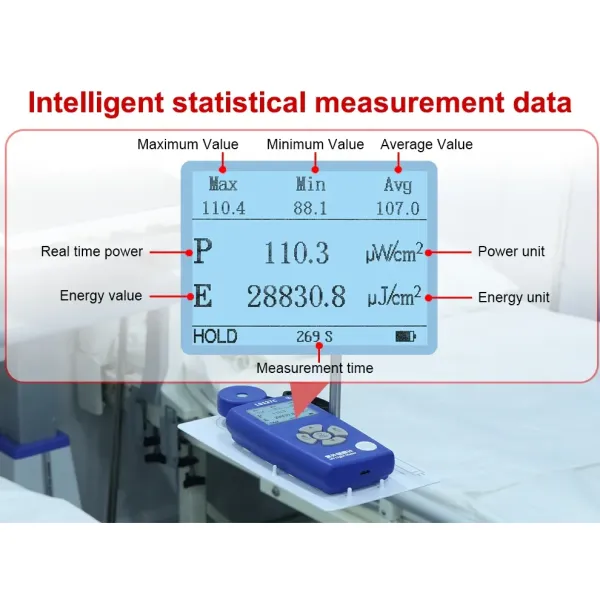

5. The uvc tester counts real-time power, maximum, minimum, average, energy values
and measurement times.

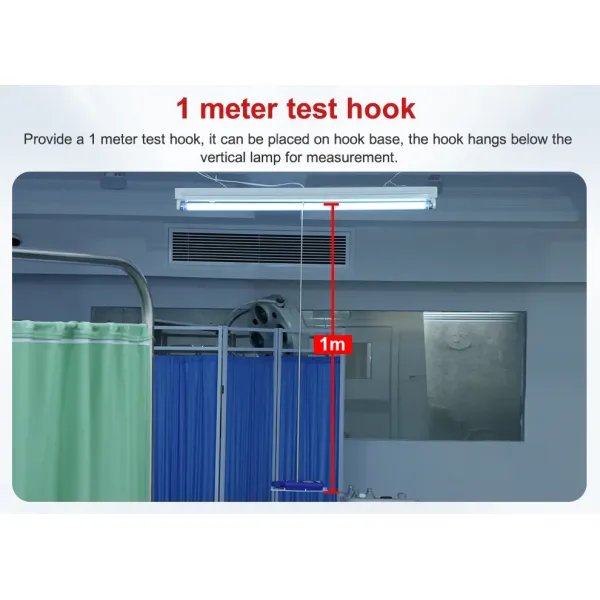

6. Provide a 1 meter test hook, it can be placed on hook base, the
hook hangs below the vertical lamp for measurement.

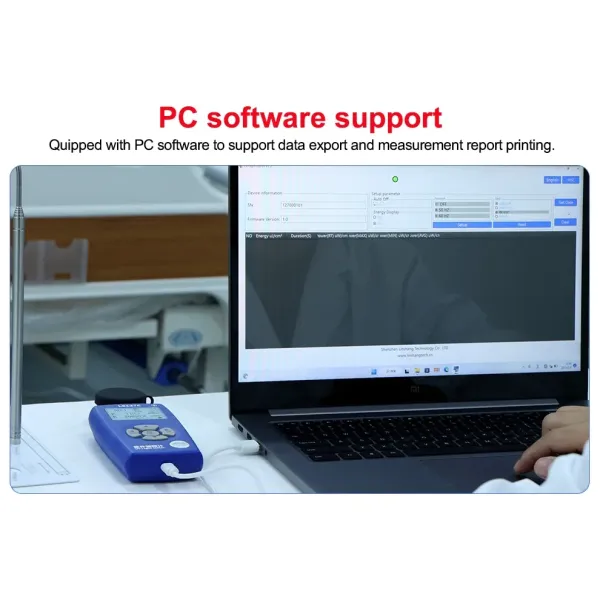

7. Equipped with PC software to support data export and measurement
report printing.
Parameter | Value |
Spectral response | 230nm-280nm,λp = 254nm |
Power measuring range | 0 - 20000μW/cm2 |
Power resolution | 0.1μW/cm2 |
Energy measuring range | 0 - 9999999 μJ/cm2 |
Relative indication error | ±8%(relative to NIM standard) |
Long wave response error | 60% |
Cosine characteristics (directional response) error | 10% |
Linearity error | ±1% |
Short-term instability | ±1%( 30min after startup) |
Fatigue characteristics | Attenuation 2% |
Error of zero | ±0.1% of full scale |
Response time | 0.5 seconds |
Recording time | 0 - 99999S |
Unit | μW/cm2 (default),mW/cm2,W/m2 |
Bluetooth transmission distance | 50 meters (open area) |
Instrument size | 188.5mm*75.2mm*30.3mm |
Instrument weight | About 232 grams (including batteries) |
Display | 240*160 dot matrix LCD |
Battery | 2 AA alkaline dry batteries |
|
