Lightweight and portable ATC sugar meter refractometer that is
suitable for sugar content measurement of products with high sugar
content such as liquid sugar, the production of fruit juices,
refreshing drinks and carbonated drinks, and the process from
planting to sales of fruits, for degree classification.Product Feature
1. Practical Refractometer: it is used to test the concentration
and refractive index of sugar-containing solutions in fast and
effective way.

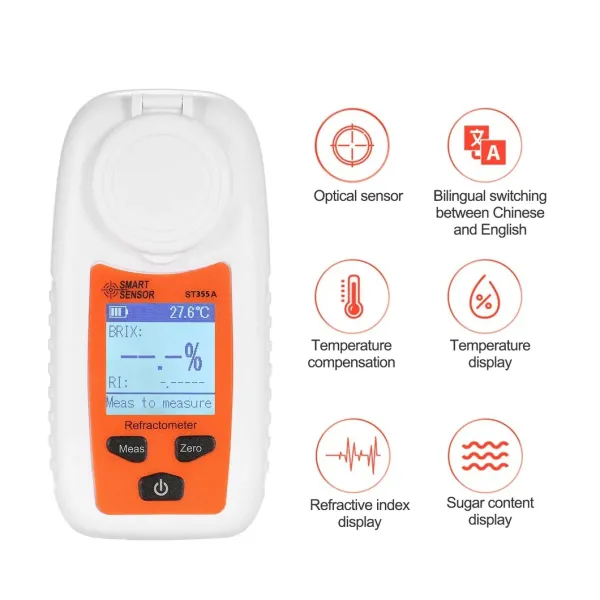

2. LCD Digital Display: using LCD large screen display to
simultaneously display temperature, sugar content, and refractive
index, 1.5-inch display screen with backlight for clearly display.

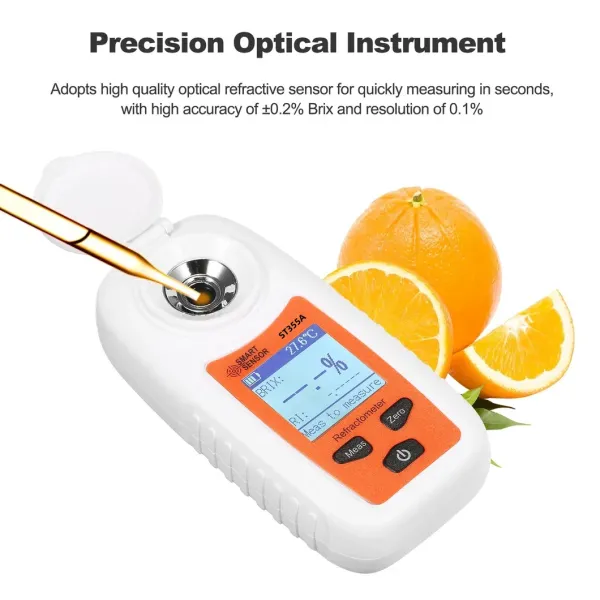

3. Precision Optical Instrument: adopts high quality optical
refractive sensor for quickly measuring in seconds, with high
accuracy of ±0.2% Brix and resolution of 0.1%.

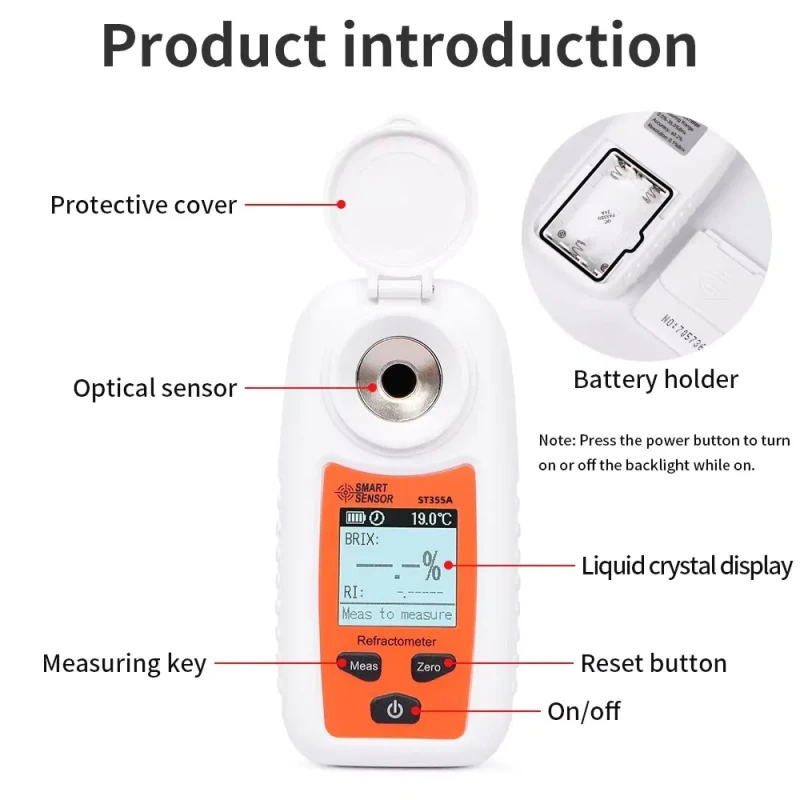

4. Dust-proof Protective Cover Design: well protected the optical
prism, easy to clean, suitable for measuring various solutions.
5. Automatic Temperature Compensation(ATC) Function: for immediate
and accurate calibration reading, not affected by the environment,
reducing measurement errors caused by different temperatures.
6. Wide Applications: it can be used in sugar, beverage and other
industrial sectors, as well as in agricultural production and
scientific research for sugar content measurement of products with
high sugar content.
Product Parameters
Material: ABS
Measuring Range: 0.0%~55.0% brix
Resolution: 0.1% brix/0.1ºC
Ambient Temperature: 10ºC~40ºC
Temperature Compensation: 10ºC~40ºC
Accuracy: ±0.2% / ±0.5ºC

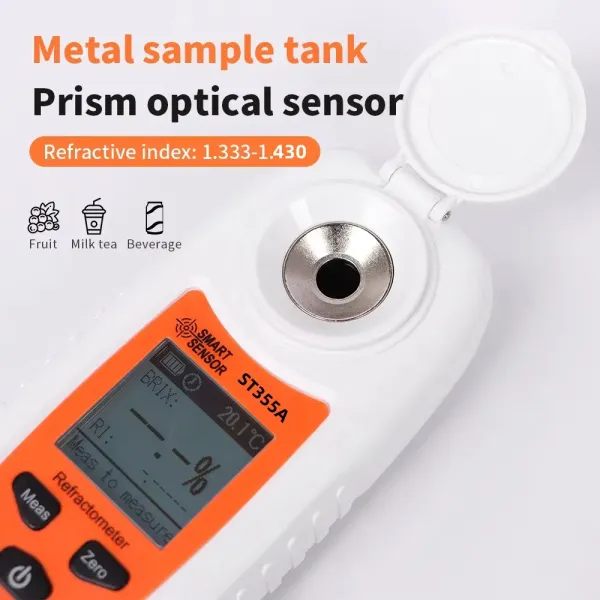

Refractive Index Display: 1.333~1.430
Power Supply: 3 * 1.5V AAA battery (NOT included)

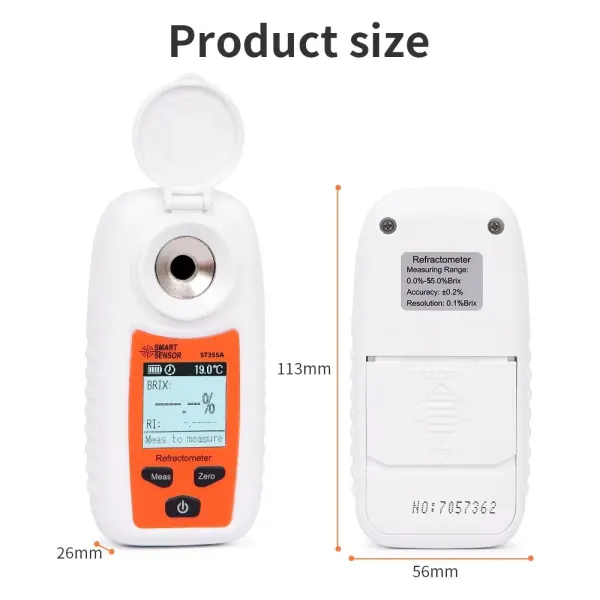

Item Size: 113 * 56 * 32mm / 4.45 * 2.20 * 1.26in
Item Weight: 111g /3.88oz
Package Weight: 187g / 6.60oz
Package Size: 19.3 * 11.3 * 4.5cm / 7.60 * 4.45 * 1.77in
| MODEL | ST355A |
| Measuring Range | 0.0%~55.0% brix |
| Ambient Temperature | 10ºC~40ºC |
| Temperature Compensation | 10ºC~40ºC |
| Resolution | 0.1% brix/0.1ºC |
| Accuracy | ±0.2% / ±0.5ºC |
| Refractive Index Display | 1.333~1.430 |
| Language | Chinese/English |
| Power Supply | 3 * 1.5V AAA battery (NOT included) |
| Zero clearing function | yes |
| Ingress protection | IP67 |
| Product weight | 110g |
| Product size | 56x32x113mm |
| Quantity of carton | 40pcs |
Detailed Photos











>>
