GGD Power Distribution Cabinet 50kw 150kw 3 Phase 380V 50Hz AC Low-Voltage Distribution Panel

Categories BESS Transformer
Brand Name: HENTG Power
Certification: ISO9001,SGS,CE,Type test report/CESI/ CTQC/ISO9001,Other
Place of Origin: China
MOQ: 1
Product name: box type electrical transformer substation,Outdoor Pad Mounted Box Type 200kva Substation,High Voltage Switchgear,Outdoor preinstalled substation (European type) / box type substation,ZGS 12kV American Type Substation
Rated voltage: 12kV,0.4KV/12KV,11KV 15KV 22KV 33KV,6.3KV,13.8KV
Type: prefabricated substation,YBW-12/0.4-2000,American type,Electrical Boxes substation,Outdoor type
Application: industrial,Electric Power Transmission,metallurgy and other fields.,high buildings,airports
Standard: IEC60439,IEC60076,IEC/GB,JB/T,CQC
Color: Customer Request,CUSTOMIZED COLOR,Green,green or optional,As Required
Frequency: 50/60Hz,50Hz or 60Hz
Material: Steel,Copper,galvanized sheet etc.,201,Cold plate spray molding
Rated current: 115A/2887A,H voltage 200---630KA,630A,1000KVA,630 1250 1600A
Rated capacity: 200,200-2500kva,3000,80,400
Vector group: Dyn11,Dyn5,Ynd11,or others,Yyn0
Transformer type: dry type or oil immersed type transformer
Key words: 12kv box transformer substation,Network automation terminal
Capacity: 30-2000KVA
High voltage: 10kV,below 35KV,6KV To 35KV
Port: any port in china,SHANGHAI
Rated frequency: 50Hz,50/60Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

GGD Power Distribution Cabinet 50kw 150kw 3 Phase 380V 50Hz AC Low-Voltage Distribution Panel

HENTG Power GGD Cabinet Electrical Distribution Board
3 Phase Panel Board 50kw-150kw Parallel Cabinet Industrial Controls
Product Overview

The GGD type AC low-voltage distribution cabinet is designed for power distribution, motor control centers, and capacitor compensation in various low-voltage distribution systems. Ideal for power plants, substations, petrochemical facilities, industrial plants, mining operations, and high-rise buildings.

Key Features
  • AC frequency: 50Hz
  • Rated working voltage: 380V
  • Rated working current up to 3150A
  • High breaking capacity with excellent dynamic and thermal stability
  • Modular structure with superior heat dissipation
  • Enhanced safety performance and modern design
  • Comprehensive power conversion, distribution, and control capabilities
GGD Distribution Cabinet front view

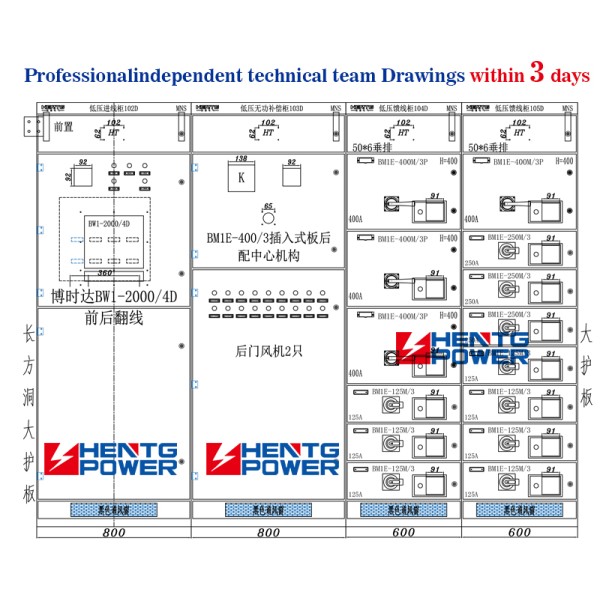

GGD Distribution Cabinet side view

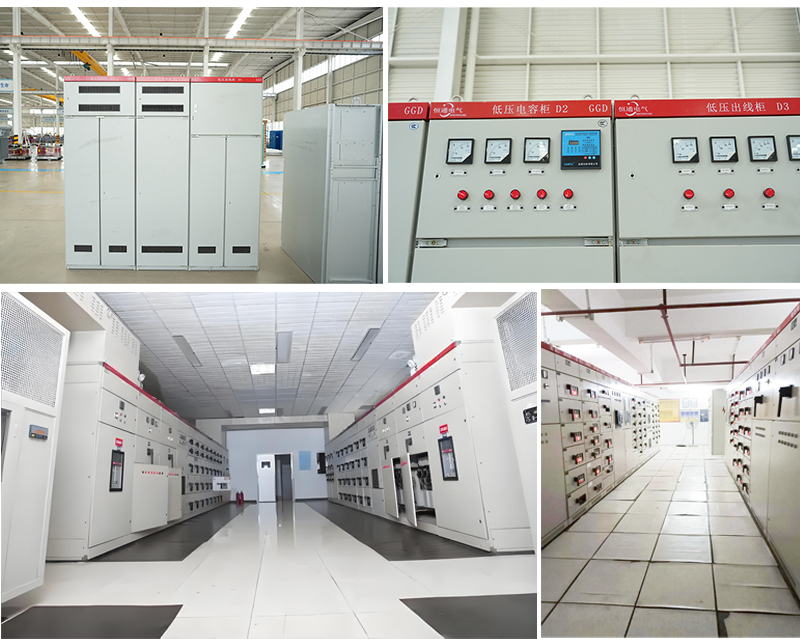

GGD Distribution Cabinet internal components
Manufacturing Capabilities
  • 30+ senior engineers providing 24/7 online support with 30-minute response time
  • 100,000m² factory with 250 skilled workers and 30+ engineers
  • 4 production lines with 10,000+ units annual production capacity
  • 100% OQC testing with 25-point quality inspection
  • 15 years of power transformer design and manufacturing experience
Compliance & Standards

Our products meet or exceed the following standards: GB 20052-2024, ANSI/IEEE/DOE2016, CSA, and IEC60076. We provide cross-industry power transformer solutions with global on-site technical support.
