Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276

Categories Nema23 Closed Loop Stepper Motor Driver
Model Number: LCDA606S+LC57H276
Brand Name: LICHUAN
Place of Origin: guangdong
MOQ: 1 set
Price: $65.97-70.65 / set
Phase: 2
Type: Permanent Magnet
Warranty: 3 months ~ 1 year
Brand: Lichuan
Speed: 1000rpm
Holding Torque (N.m): 2n.m
Phase Current (A): 3.0
Voltage: DC24V~50V
Encoder Resolution(PPR): 1000
Shaft Diameter(mm): 8
Shaft Length(mm): 21
Length (mm): 98
Weight (kg): 1.2
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

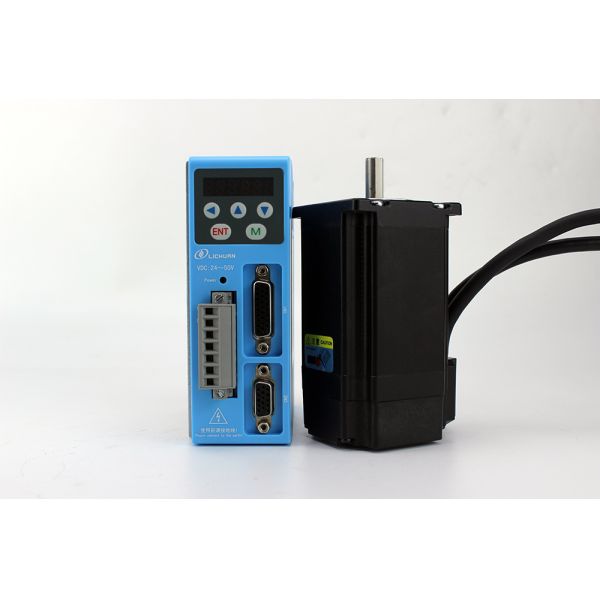

Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276

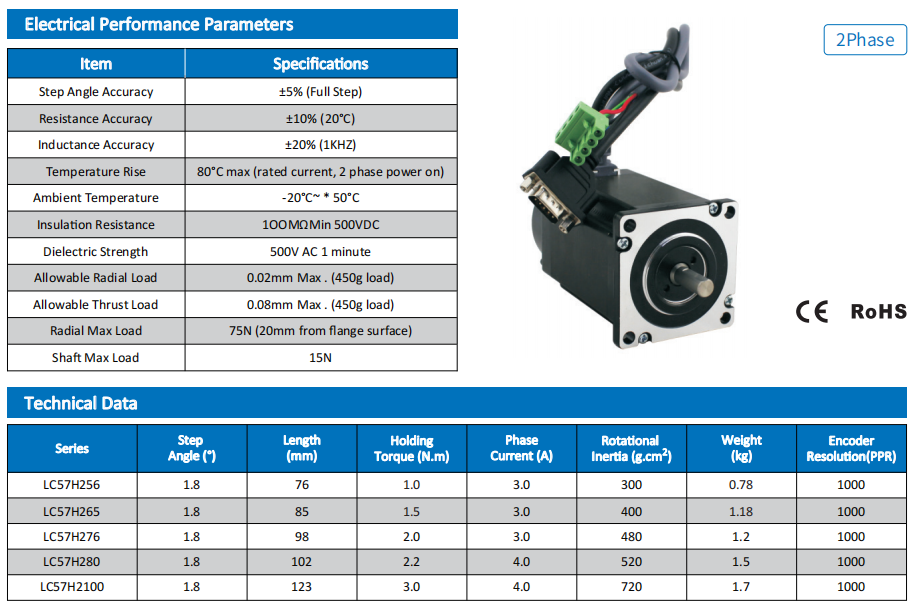

Products Description
Product Name
2 Phase digital hybrid stepper motor driver kit
Type
LC57H276+LCDA606S
Brand Name
LICHUAN
Holding Torque (N.m)
2.0
Phase Current (A)
3.0
Weight (kg)
1.2
Encoder Resolution(PPR)
1000
Length (mm)
98
LCDA606S is a mature and stable hybrid servo driver , it adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to 2 phase Nema23/24 closed loop motors,has both stepper and servo advantages.
Functional Characteristics
Voltage input range: DC24V~50V Max peak current: 7A Subdivision range: 200~51200ppr Pulse input form: PULS + DIR, CW + CCW Encoder feedback: 1000 pA, incremental encoder External digital debugging panel, easy parameter setings and monitoring. Serial port communication function, current, subdivision, signal edge and alarm output logic functions can be adjusted. Over-voltage, over-current, tracking error and out of error protection functions. Closed loop vector control, assure high-speed large-torque output and no step missing of motor.
Application Industry
Apply to various small and medium-sized automation equipment and devices, such as: engraving machine, wire decoating machine, marking machine, cutting machine, laser machine, plotting instrument, medical equipment, CNC, automatic assembly equipment, electronic processing equipment and etc. Excellent application effects for low-noise and high-speed equipment.
Application Area
Quality Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 for sale
