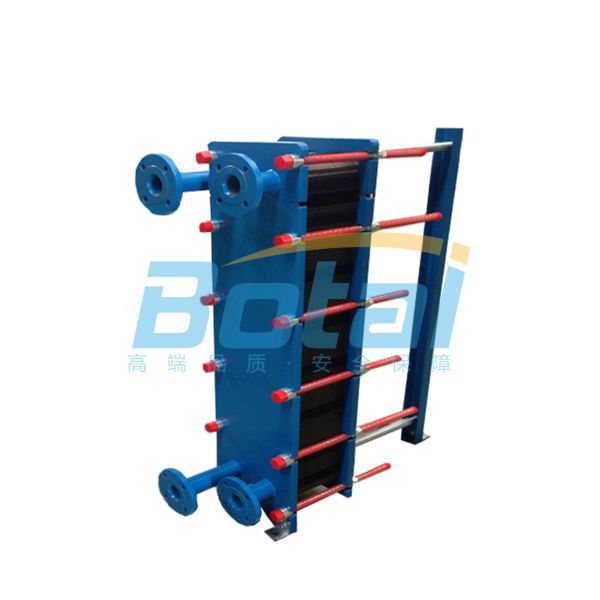

The TL6B removable plate heat exchanger is a high-efficiency
partition wall type heat exchange device belonging to the removable
plate heat exchanger series. With its compact structural design and
excellent heat exchange performance, it meets the heat exchange
requirements of cold and hot media in various industries, and can
achieve the process goals of cooling hot media and heating cold
media, making it an ideal choice for liquid-liquid and liquid-vapor
heat exchange.
The core of this product consists of multiple heat exchange plates,
which are metal thin plates stamped with corrugated grooves.
Gaskets are equipped around the plates and compressed and fixed by
clamping studs. The holes at the corners of the plates form a
continuous medium channel. The plates are arranged in an
alternating manner, so that the two kinds of fluids (cold and hot)
enter their exclusive channels respectively and are completely
separated by the plates. A countercurrent flow mode is adopted
under normal working conditions.
During the heat exchange process, the hot medium transfers heat
energy to the metal plates, which in turn conduct the heat energy
to the cold medium on the other side, completing the efficient heat
exchange. Finally, the hot medium is cooled down and the cold
medium is heated up to achieve the intended use effect.
- Excellent heat exchange efficiency: It features a high heat transfer coefficient, low fouling factor
and small terminal temperature difference, enabling efficient heat
exchange in a limited space with a high heat recovery and
utilization rate.
- Convenient maintenance and operation: The removable structural design facilitates the inspection,
repair and cleaning of the equipment, and the post-operation
maintenance can be completed without complex procedures.
- Flexible layout and space saving: The overall structure is compact with a small floor area and
light weight, which adapts to the installation and layout
requirements of various factory buildings and saves space
resources.
- Strong adaptability: The number of plates can be flexibly increased or decreased
according to the actual production heat exchange requirements, and
the heat exchange area or process combination can be easily changed
to adapt to the use requirements of different working conditions.
The plates and sealing accessories of the TL6B removable plate heat
exchanger are reasonably matched. The design of corrugated plates
makes the medium flow form a turbulent state, further improving the
heat exchange efficiency. Meanwhile, the materials of plates and
gaskets can be selected as required, which can adapt to the heat
exchange requirements of various conventional media such as steam
and water, and meet the basic production process requirements of
most industries.
Relying on its flexible structure and high-efficiency heat exchange
performance, the TL6B removable plate heat exchanger is widely used
in industries with basic requirements for convenient equipment
maintenance and heat exchange efficiency, such as heating,
ventilation and air conditioning (HVAC), civil domestic hot water
supply, food, beverage and light industry, medicine, and machinery
manufacturing. It can be applied to conventional heat exchange
processes including cold/hot water heat exchange for central air
conditioning, centralized hot water supply, and cooling/heating of
food raw materials.
