Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit

Product Introduction

The Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit is designed for high-precision motion control applications. With torque options ranging from 1.0N·m to 3.5N·m, this kit provides reliable closed-loop feedback for accurate positioning, making it ideal for CNC machines, 3D printers, laser cutting systems, and other automation equipment. It ensures smooth, precise movement even under variable loads, delivering industrial-grade performance for both professional and DIY applications.

Product Information

• Product Name: Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit

• Torque Options: 1.0 / 1.5 / 2.0 / 2.2 / 3.0 / 3.5 N·m

• Motor Type: 2-Phase Nema23 Stepper Motor

• Voltage Range: DC24V~50V

• Current Range: 3.0~4.0A

• Resolution: 1000PPR (Pulse Per Revolution)

• Control Mode: Closed-loop stepper driver system

• Applications: CNC, 3D printing, laser engraving/cutting, industrial automation

Product Description

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit by Lichuan delivers precise motion control and high torque output with closed-loop feedback technology. The kit comes complete with two high-performance stepper motors, two drivers, and necessary cables, making installation and integration fast and hassle-free. Designed to prevent step loss, this kit maintains smooth operation under heavy loads and is compatible with most industrial controllers.

Specifications & Technical Data

Application Areas

• CNC milling and routing machines

• 3D printing systems

• Laser engraving and cutting

• Robotics and automated assembly lines

• Industrial automation equipment

Product Features

1. High Precision Control: Closed-loop system eliminates missed steps.

2. Multiple Torque Options: Provides flexibility for various load requirements.

3. Wide Voltage Range: Operates efficiently between DC24V and 50V.

4. Plug-and-Play Installation: Pre-wired for easy integration with controllers.

5. Durable and Reliable: Industrial-grade components ensure long-term performance.

Product Technology

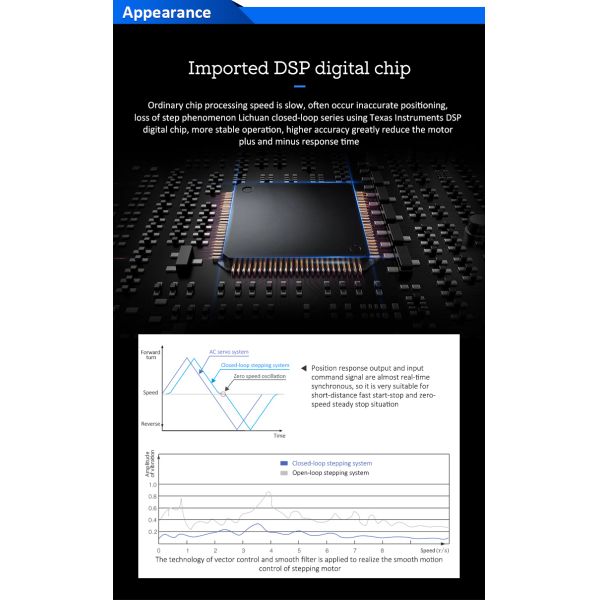

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit uses encoder feedback technology to monitor motor position in real time. When the motor experiences load changes, the driver automatically adjusts current and torque to maintain exact positioning, ensuring high-speed response and accurate motion.

Working Principle

• Stepper motors with closed-loop feedback detect deviations from the commanded position.

• Drivers automatically compensate torque and current to correct errors.

• Continuous feedback ensures stable, precise motion even under varying loads.

Product Advantages

• High-precision positioning with step-loss prevention

• Wide torque range suitable for different load applications

• Easy integration with existing motion control systems

• Reliable operation under continuous use

• Reduced vibration and low-noise operation

Product Services

• Comprehensive technical support and installation guidance

• Firmware updates and driver customization options

• OEM/ODM customization for motor specifications, voltage, and current

Production Process

1. Motor winding and assembly

2. Driver PCB manufacturing and testing

3. Encoder installation and calibration

4. Final assembly and quality control inspection

5. Packaging and shipping

Operating Instructions

1. Connect motors to the drivers using supplied cables.

2. Connect the drivers to a DC24V~50V power supply.

3. Connect the drivers to your motion controller.

4. Power on the system and verify encoder feedback.

5. Adjust driver parameters for torque, speed, and microstepping as needed.

Safety Precautions

• Ensure voltage and current match specifications.

• Avoid exposure to moisture and extreme temperatures.

• Disconnect power before making wiring changes.

• Do not attempt to disassemble drivers without professional guidance.

Company Overview

Lichuan is a leading manufacturer of high-precision motion control solutions, specializing in stepper motors, drivers, and closed-loop systems. Our products are widely used in CNC, 3D printing, laser cutting, and industrial automation. We are committed to delivering reliable, high-performance solutions for professional and DIY applications worldwide.

Certifications & Quality Assurance

• CE Certified

• RoHS Compliant

• ISO9001 Quality Management

• 100% Tested for performance and reliability

Customer Support

• 24/7 technical assistance

• Online manuals, setup guides, and video tutorials

• OEM/ODM customization support

FAQ

Q1: Is this kit compatible with standard CNC controllers?
A1: Yes, it supports most CNC and motion control systems.

Q2: Does it include wiring and connectors?
A2: Yes, the kit comes with all necessary components for plug-and-play installation.

Q3: What is the warranty period?
A3: The standard warranty is 12 months.

Q4: Can it operate under heavy load continuously?
A4: Yes, the drivers have overcurrent and thermal protection for reliable continuous operation.
